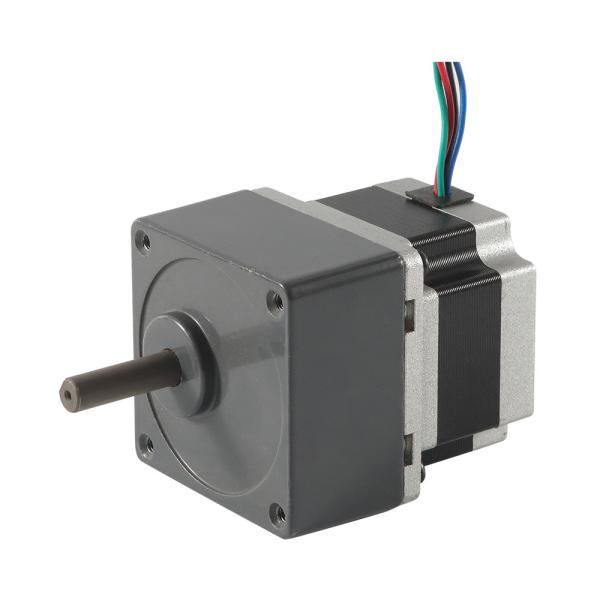

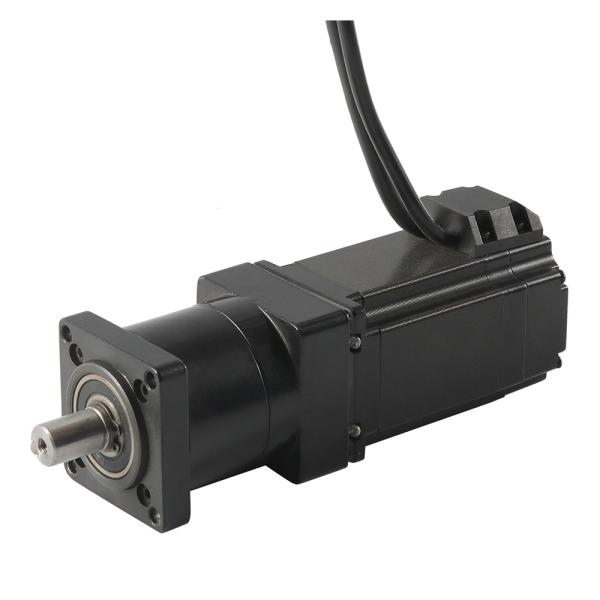

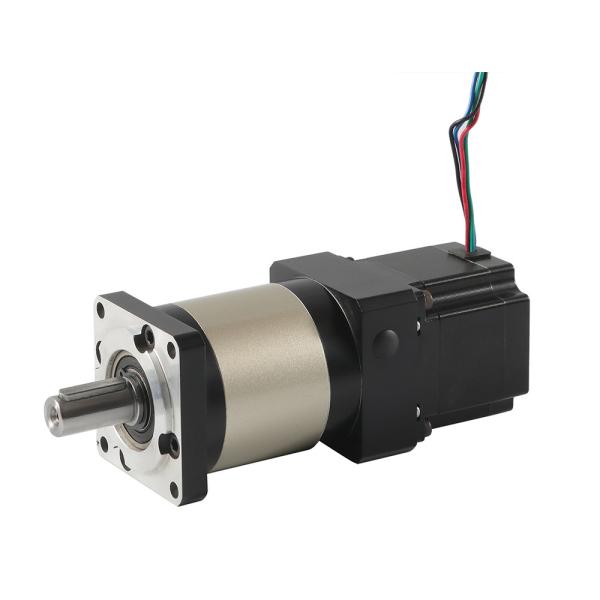

Jkongmotor Nema 11 17 23 24 34 Close Loop Hybrid Set Integrated Closed Loop Stepper Motor With Encoder / Brake / Gearbox

Specifications

Brand Name :

Jkongmotor

Model Number :

Nema 34 Closed Loop stepper motor kits

Certification :

CE, ROHS,ISO9001, ISO14001

Place of Origin :

China

MOQ :

3-10pcs

Price :

US$80~US$320

Payment Terms :

T/T , paypal , Western Union, L/C

Supply Ability :

100000pcs/month

Delivery Time :

For samples , 7-15 days / For batch , 15-25days

Packaging Details :

with export carton . big quantity with pallet

Phase :

Current :

6.0A

Holding Torque :

4.6N.m - 13N.m

Resistance :

0.27Ω - 0.44Ω

Inductance :

2mH - 3.8mH

Detent torque :

1.2kg.cm - 3.6kg.cm

Warranty :

12 months

Number of leads :

Key words :

3axis 4axis stepper motor kits

Description

Jkongmotor Nema 11 17 23 24 34 Close Loop Hybrid Set Integrated Closed Loop Stepper Motor With Encoder / Brake / Gearbox

Product Description:

Motor Features:

1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the
traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.

At the core, closed loop stepper is a control technique that adds an encoder to the motor so that it can be driven like a servo rather than via the traditional open-loop approach. The fact that an encoder is needed means that truly low cost applications will not be good candidates for closed loop stepper.

JKONGMOTOR stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

Characteristics of Jkongmotor Stepper Motor

1. The magnetic steel is high grade,we usually use the SH level type.
2. The rotor is be coated,reduce burrs,working smoothly,less noise. We test the stepper motor parts step by step.
3. Stator is be test and rotor is be test before assemble.
4. After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Nema 17 Closed Loop Stepper Motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Motor
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
JK42HS34-1334BED-01	1.8	34	1.33	2.1	2.5	2.6	4	120	34	0.22
JK42HS40-1704BED-02	1.8	40	1.7	1.5	2.3	4.2	4	150	54	0.28
JK42HS48-1684BED-02	1.8	48	1.68	1.65	2.8	5	4	260	68	0.38
JK42HS60-1704BF-ED-01	1.8	60	1.7	3	6.2	7.3	4	280	102	0.55

Drawing:

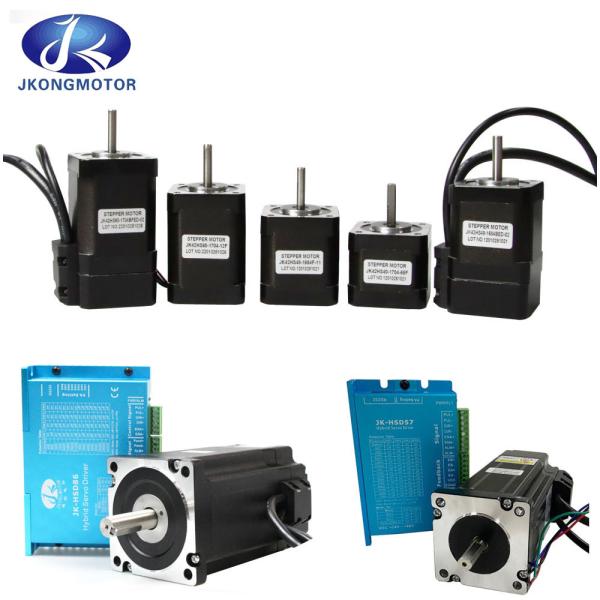

Product Images:

Nema 23 Closed Loop Stepper Motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2	Kg
JK57HSN12	1.8	56	4.2	0.4	1.5	1.2	4	350	280	0.98
JK57HSN21	1.8	76	4.2	0.6	2	2.1	4	600	440	1.1
JK57HSN30	1.8	112	4.2	0.9	4	3	4	1200	800	1.4

Drawing:

Product Images:

Suitable Driver JK-HSD 57:

Nema 24 Closed Loop Stepper Motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm2	Kg
JK60HSN30	1.8	88	4	0.65	2.4	3	4	1000	840	1.4
JK60HSN40	1.8	100	4	0.7	3	4	4	1100	980	2

Drawing:

Product Images:

Suitable Driver JK-HSD 57:

Nema 34 Closed Loop Stepper Motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm2	Kg
JK86HSN45	1.8	78	6	0.27	2	4.6	4	1.2	1400	2.3
JK86HSN65	1.8	100	6	0.27	2.2	6.8	4	1.9	2200	3
JK86HSN85	1.8	115	6	0.36	3.8	8.5	4	2.4	2700	4.3
JK86HSN120	1.8	155	6	0.44	3.8	12	4	3.6	4000	5.9

Drawing:

Product Images:

Suitable Driver JK-HSD 86:

Hybrid Stepping Motor Customized:
