60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
Specifications
Brand Name :
Jkongmotor
Model Number :
JK60HSN30
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$55.5~US$73.5/pcs
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
NEMA24 Closed loop Servo Motor
Phase :
2
Voltage :
2.6V
Current :
4A
Holding Torque :
3N.m
Step Angle :
1.8 Degree
No. of Leads :
4
Motor Diameter :
60mm
Motor length :
108mm
Typical applications :
CNC machine
Description

Nema 24 2 Phase 1.8 Degree Closed Loop Stepper Motor 3Nm Easy Servo Motor kit JK60HSN30

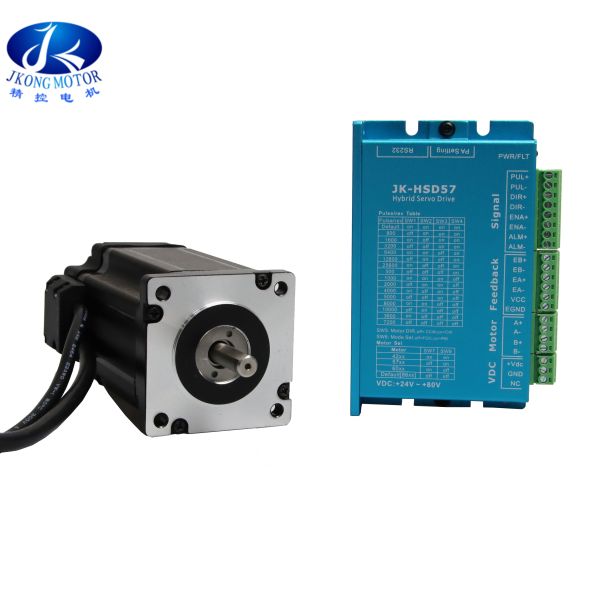

1) Product Description

3N.m Nema24 Closed loop Motor + driver full kit

1) Product Name: 3N.m Nema24 Closed loop servo stepper motor
Model: JK60HSN30
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 2.6V
Rated Current: 4.0 Amps
Holding Torque: 3N.m
Motor Diameter: 60mm
Motor length:108mm
Shaft Length: 24mm
Shaft Diameter: 8mm

2) Product Name: 3N.m Nema24 Closed loop servo stepper driver
Model:JK-HSD57
Voltage Range: 24-80VDC
Microstep/pulse: 25600/rev

3)Typical applications: CNC machine

2) Product Images
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
3) Product Drawings
60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit
4) Other Models
Closed Loop Servo Stepper Motor /
Easy Servo Stepper Motor Series
Motor series
Phase No.
Step angle
Leads No.
Motor size
Holding Torque
Nema 23
2 phase
1.8 degree
4
57x57mm
1.8
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
2.2
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
4
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
4.5
N.m
Nema 34
3 phase
1.8 degree
4
86x86mm
8.5
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
12
N.m
Nema 42
2 phase
1.2 degree
4
110x110mm
20
N.m
Nema 52
3 phase
1.2 degree
4
130x130mm
30
N.m
Above only for representative products, products of special request can be made according to the customer request.

5) Other Products

60mm Nema 24 Servo Motor 1.8 Degree With Driver Full Kit

6) Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
