7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
Specifications
Brand Name :
Jkongmotor
Model Number :
IHSV57-30-18-36-01-BY-PY
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$75~US$88/pcs
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
Closed loop Servo Motor
Phase :
3
Voltage :
36V
Current :
7.5A
Holding Torque :
0.6N.m
Power :
180W
Speed :
3000rpm
Shaft :
D shaft
Inductance :
0.58±20%mH
Resistance :
0.53±10%Ω
Description

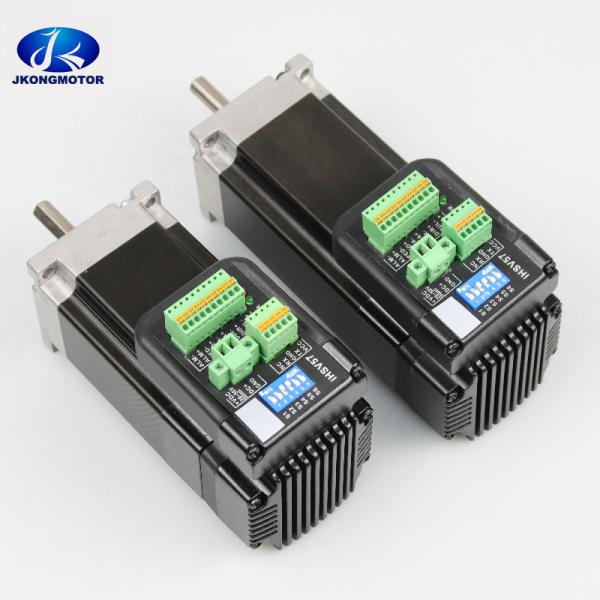

7.5A 180W Nema23 Integrated Servo Motor IHSV57-30-18-36-01-BY-PY for Large format Printer

7.5A 180W Nema23 Integrated Servo Motor For Large Printer
item
value
Warranty
1 YEAR
Place of Origin
China
Brand Name
Jkongmotor
Model Number
IHSV57-30-18-36-01-BY-PY
Phase
3
Type
Hybrid
Current / Phase
7.5A
Product name
Nema 23 Closed Loop Stepper Motor
Step angle
1.8 degree
Motor length
148mm
Resistance
0.53Ω
Inductance
0.58mH
Holding torque
0.6N.m
Number of leads
4
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
7.5A 180W Nema23 Integrated Servo Motor For Large Printer
Closed Loop Servo Stepper Motor /
Easy Servo Stepper Motor Series
Motor series
Phase No.
Step angle
Leads No.
Motor size
Holding Torque
Nema 23
2 phase
1.8 degree
4
57x57mm
1.8
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
2.2
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
4
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
4.5
N.m
Nema 34
3 phase
1.8 degree
4
86x86mm
8.5
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
12
N.m
Nema 42
2 phase
1.2 degree
4
110x110mm
20
N.m
Nema 52
3 phase
1.2 degree
4
130x130mm
30
N.m
Above only for representative products, products of special request can be made according to the customer request.

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
