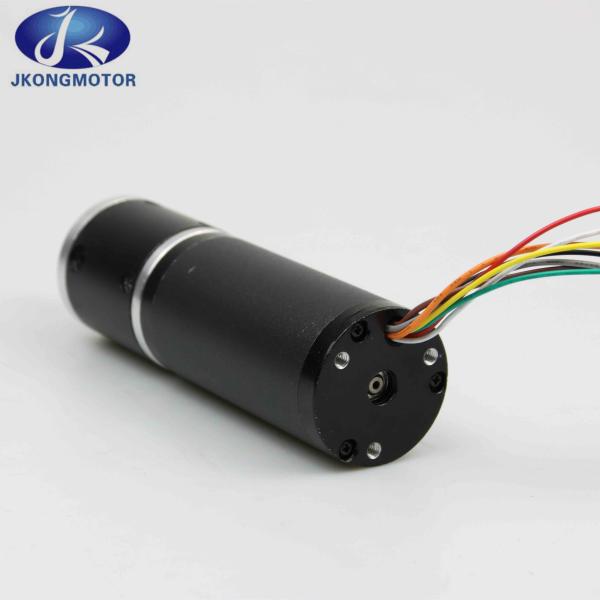

JK42BL85 High Performance 24V 62W 4000rpm Brushless DC Motor with Planetary Gearbox Reducer

1.Genaral Specification of 42mm bldc motor:

Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 24V
Rated Speed: 4000RPM
Rated Torque: 0.15N.m
Peak Current: 7.5A
Rated Power: 62W
Body length: 85mm
Weight: 0.7KG
With 24:1 Planetary Gearbox Reducer, the speed is about 130rpm, the torque is about 2.8N.m.
The Matched driver is JKBLD120.

motores paso a pas

2. Electrical Specification of brushless dc motor:

4.Drawing of 24v bldc motor: (Unit=mm)

5.Advantages of 4000rpm bldc motors:

A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.

6.Applications of brushless motor:

We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.

BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.

7.Customized of brushless electric motor:

• BLDC motor with fan
• BLDC motor with gearbox
