Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Specifications
Brand Name :
Jkongmotor
Model Number :
JK180BLS10500
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$1500~US$2500/pcs
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Product name :
72V 10KW Brushless DC Motor
Key word :
BLDC Motor
Phase :
3 phase
Poles :
8 poles
Voltage :
72V
Speed :
2000rpm
Rated Torque :
50N.m
Power :
10KW
Motor Diameter :
180mm
Usage :
Automation Industry
MOQ :
10pcs
Description

1) Product Description

  • Product Name: 10KW Brushless DC Motor
  • Number of Phase: 3 Phases
  • Number of Poles: 8 Poles
  • Rated Power: 10KW (10500W)
  • Rated Voltage: 72V/96V
  • Rated Current: 171A/72V, 128A/96V
  • Rated Speed: 2000RPM
  • NoLoad Speed: 2400RPM
  • Rated Torque: 50N.m
  • Max Torque: 110N.m
  • Motor Diameter: 180mm
  • Body length: 345mm
  • Ingress Protection: IP65
  • Ambient Temperature: 0-50℃
  • Ambient Humidity: ＜90%

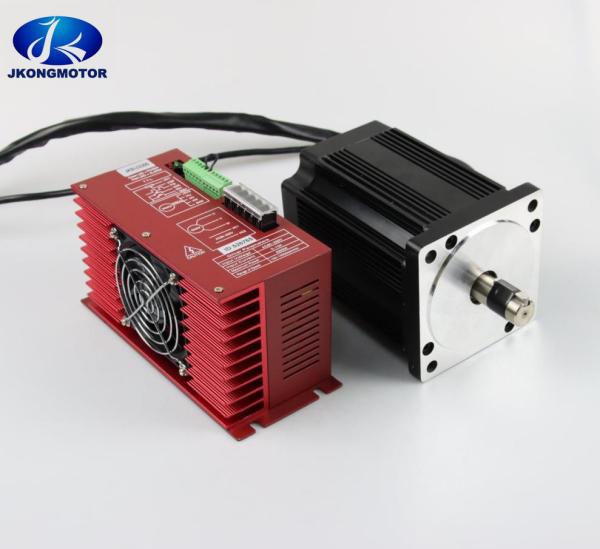

2) Product Images
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems
3) Product Drawings
Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems

4) OTHER MODELS OF BRUSHLESS DC MOTOR
Model No.
Diameter
Voltage
Rated Speed
Rated Torque
Power
JK42BLS
42MM
24V
4000 RPM
0.0625~0.25N.m
26~105W
JK57BLS
57MM
36V
4000 RPM
0.055~0.44N.m
23~184W
JK60BLS
60MM
48V
3000 RPM
0.3~1.2N.m
94~377W
JK80BLS
80MM
48V
3000 RPM
0.35~1.4N.m
110~440W
JK86BLS
86MM
48V
3000 RPM
0.35~2.1N.m
110~660W
JK110BLS
110MM
24~310V
3000 RPM
1.65~6.6N.m
500~2000W
JK130BLS
130MM
48~310V
3000 RPM
2.39~11.94N.m
750~2500W
JK180BLS
180MM
48~310V
2000/3000
16~50N.m
5000~10500W
And more customized models.

5) MODELS OF BRUSHLESS DC MOTOR DRIVER
Model No.
Voltage
Current
Power
Speed
JKBLD70
DC 12~24V
0.05~3A
70W
10000RPM
JKBLD120
DC 12~30V
0~8A
120W
20000RPM
JKBLD300
DC 18~50V
15~25A
300W
20000RPM
JKBLD300R
DC 15~48V
2~20.6A
300W
20000RPM
JKBLD480
DC 24~48V
0~10A
480W
10000RPM
JKBLD720
DC 24~48V
0~15A
720W
8000RPM
JKBLD750
DC 18~50V
25~48A
750W
20000RPM
JKBLD1100
AC 80~220V
0~5A
1100W
10000RPM
JKBLD2200
AC 80~220V
0~10A
2200W
10000RPM
And more customized models.

6) Other Products

Powerful 50Nm 10KW 72V Brushless DC Motor Frameless For Bus AC Systems

7) Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
