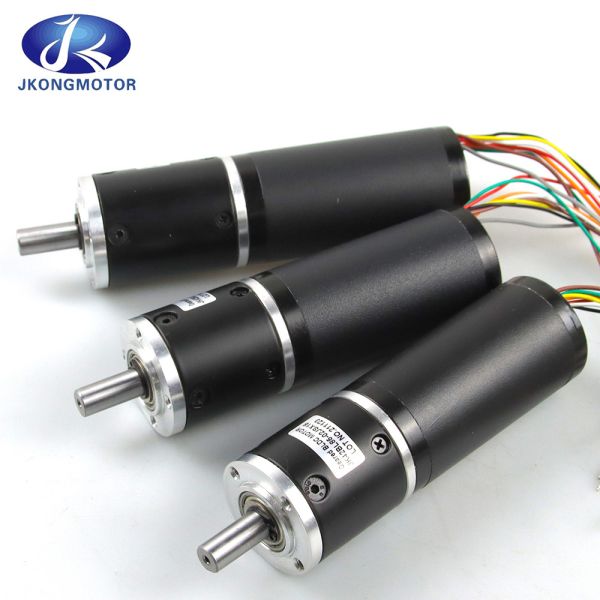

Jkongmotor OEM Manufacturer 56mm High Torque High Speed Rpm Micro Small 12V 24V Mini Planetary Bldc Brushless Dc Motor With Encoder

Specifications

Brand Name :

JKONGMOTOR

Model Number :

Brushless DC Motor 42MM

Certification :

CE/ROHS/ISO

Place of Origin :

China

MOQ :

10PCS

Price :

10-50 Usd

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time :

5-15 working days

Packaging Details :

carton

Model :

JK42BS01-JK42BS02-JK42BS03-JK42BS04

Number of Phase :

Number of Poles :

Rated Voltage :

24V

Rated Speed :

4000/rpm

Rated Torque(N/M) :

0.625N.m-0.25/N.m

Rated Current :

1.8-6.3 Amps

Rate Power :

26W-105W

Body length :

41-100mm

Sensor :

Honeywell

Description

Brushless DC Motor 24V 3000 To 30W Drive Speed Regulation Replaces Brushed High Speed Hall 42mm BLDC DC

42mm 24V Round Brushless DC Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK42BL30	JK42BL60	JK42BL85	JK42BL93
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	24	36	24	24
Rated Speed	Rpm	3500	4000	4000	6300
Rated Torque	mN.m	18	80	150	115
Rated Power	W	6.5	32	62	76
Peak Torque	mN.m	60	240	450	500
Peak Current	Amps	1.5	5	7.5	10
Torque Constant	mN.m/A	48.7	38.5	38.6	28.7
Rotor Inertia	g.cm2	15.6	33	84	94
Body Length	mm	30	60	85	93
Weight	Kg	0.25	0.35	0.7	0.8
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

42mm 24V Square Brushless DC Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK42BLS01	JK42BLS02	JK42BLS03	JK42BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	24
Rated Speed	Rpm	4000
Rated Torque	N.m	0.0625	0.125	0.185	0.25
Peak Current	Amps	1.8	3.3	4.8	6.3
Rated Power	W	26	52.5	77.5	105
Peak Torque	N.m	0.19	0.38	0.56	0.75
Peak Current	Amps	5.4	10.6	15.5	20
Back E.M.F	V/Krpm	4.1	4.2	4.3	4.3
Torque Constant	N.m/A	0.039	0.04	0.041	0.041
Rotor Inertia	g.cm2	24	48	72	96
Body Length	mm
Weight	Kg
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

57mm 36V Brushless DC Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK57BLS005	JK57BLS01	JK57BLS02	JK57BLS03	JK57BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	36
Rated Speed	Rpm	4000
Rated Torque	N.m	0.055	0.11	0.22	0.33	0.44
Rated Current	Amps	1.2	2	3.6	5.3	6.8
Rated Power	W	23	46	92	138	184
Peak Torque	N.m	0.16	0.33	0.66	1	1.32
Peak Current	Amps	3.5	6.8	11.5	15.5	20.5
Back E.M.F	V/Krpm	7.8	7.7	7.4	7.3	7.1
Torque Constant	N.m/A	0.074	0.073	0.07	0.07	0.068
Rotor Inertia	g.cm2	30	75	119	173	230
Body Length	mm	37	47	67	87	107
Weight	Kg	0.33	0.44	0.75	1	1.25
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

60mm 48V Brushless DC Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK60BLS01	JK60BLS02	JK60BLS03	JK60BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	48
Rated Speed	Rpm	3000
Rated Torque	N.m	0.3	0.6	0.9	1.2
Rated Current	Amps	2.8	5.2	7.5	9.5
Rated Power	W	94	188	283	377
Peak Torque	N.m	0.9	1.8	2.7	3.6
Peak Current	Amps	8.4	15.6	22.5	28.5
Back E.M.F	V/Krpm	12.1	12.6	12.4	13.3
Torque Constant	N.m/A	0.116	0.12	0.118	0.127
Rotor Inertia	kg.cm2	0.24	0.48	0.72	0.96
Body Length	mm	78	99	120	141
Weight	Kg	0.85	1.25	1.65	2.05
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

80mm 48V BLDC Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK80BLS01	JK80BLS02	JK80BLS03	JK80BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	48
Rated Speed	Rpm	3000
Rated Torque	N.m	0.35	0.7	1.05	1.4
Rated Current	Amps	3	5.5	8	10.5
Rated Power	W	110	220	330	440
Peak Torque	N.m	1.05	2.1	3.15	4.2
Peak Current	Amps	9	16.5	24	31.5
Back E.M.F	V/Krpm	13.5	13.3	13.1	13
Torque Constant	N.m/A	0.13	0.127	0.126	0.124
Rotor Inertia	g.cm2	210	420	630	840
Body Length	mm	78	98	118	138
Weight	Kg	1.4	2	2.6	3.2
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

86mm 48V Dc Brushless Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK86BLS58	JK86BLS71	JK86BLS84	JK86BLS98	JK86BLS125
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	48
Rated Speed	Rpm	3000
Rated Torque	N.m	0.35	0.7	1.05	1.4	2.1
Rated Current	Amps	3	6.3	9	11.5	18
Rated Power	W	110	220	330	440	660
Peak Torque	N.m	1.05	2.1	3.15	4.2	6.3
Peak Current	Amps	9	19	27	35	54
Back E.M.F	V/Krpm	13.7	13	13.5	13.7	13.5
Torque Constant	N.m/A	0.13	0.12	0.13	0.13	0.13
Rotor Inertia	g.cm2	400	800	1200	1600	2400
Body Length	mm	71	84.5	98	111.5	138.5
Weight	Kg	1.5	1.9	2.3	2.7	4
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% RH or below (no condensation)
Working Environment	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	1000 meters or less

110mm 310V Brushless Motor Parameters:

Specification	Unit	Model
Specification	Unit	JK110BLS50	JK110BLS75	JK110BLS100	JK110BLS125
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	310
Rated Speed	Rpm	3400
Rated Torque	N.m	2.38	3.3	5	6.6
Rated Current	Amps	0.5	0.6	0.8	1
Rated Power	KW	0.75	1.03	1.57	2.07
Back E.M.F	V/Krpm	91.1	91.1	91.1	88.6
Torque Constant	N.m/A	0.87	0.87	0.87	0.845
Body Length	mm	130	155	180	205
Sensor	Honeywell
Insulation Class	H

Brushless dc motor customized:
