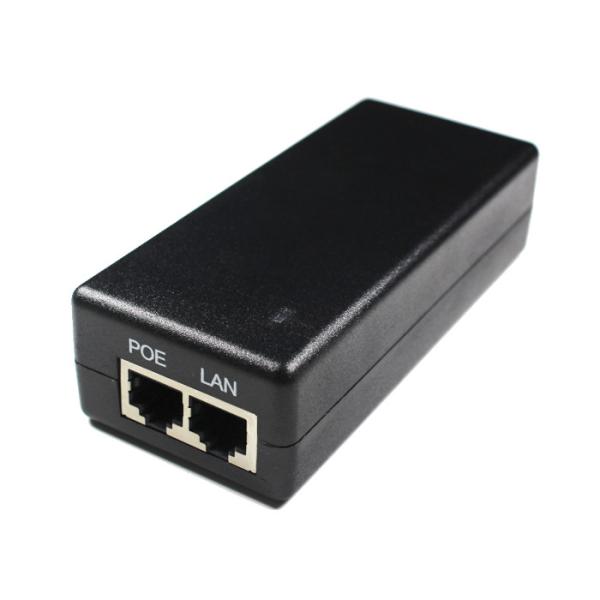

DOE VI 24V1A 100Mbps Mid-spans poe injector for outdoor ptz ip camera poe
DOE VI 24V1A 100Mbps Mid-spans poe injector for outdoor ptz ip camera poe
Specifications
Brand Name :
JKW
Model Number :
POE2400100
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Supply Ability :
50000pcs per month
Delivery Time :
3weeks
Packaging Details :
gift box
Description

DOE VI 24V1A 100Mbps Mid-spans poe injector for outdoor ptz ip camera poe

Introduction:

The high power passive 10/100M Base-T PoE Injector can realize synchronous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of per port is up to 24W, which can serve as an outlet for a PoE device (powering via RJ45 port).

Features:

  1. 10/100Mbps Data Rates
  2. 100-240VAC Universal Input
  3. C6 socket 3pin AC input
  4. 2KV Surge protection in AC side and PoE side
  5. Overload and Over Voltage Control Function
  6. System/user indicator
  7. Over Load Shutdown and Short Circuit Protection
  8. CE UL FCC Compliant
  9. Desktop Style / Non-vented Case
  10. 2 Years Warranty

Specifications:

Model POE2400100
OUTPUT DC Voltage 24V
Rated Current 1A
Current Range 0~1000mA
Rated Power 24W
Ripple & Noise (mv-pp) 1% Vp-p max.
Regulation Accuracy ±10.0%
Set-up Time <1.5S (230VAC input, full load)
Hold-up Time >50mS(230VAC input, full load)
INPUT Voltage Range 100-240VAC
Frequency Range 47-63Hz
AC Input Current (Max.) <700mA
protection Internal Primary Current Fuse, Inrush Limiting
PROTECTION Shout Circuit fuse
ENVIRONMENT Operating Temp. & Hum. 0℃~40℃, 20%-90%RH (non-condensing)
Storage Temp. & Hum. -20℃~70℃, 20%-95%RH (non-condensing)
GENERAL SPECIFICATIONS Leakage Current Less than 250us
Inrush Current 30A
Efficiency 87%(average)
OTHERS Dimension (L*W*H mm) 120*69*50mm
Weight (g) 240±10g
Cooling Free Air Convection
Packing Carton

Detailed Images

Applications

Company Information

JKW is a leading manufacturer and exporter of UPS,PoE Switch, PoE injector and Power adapters. Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.

  • An excellent team which is experienced with market and has strong technical capability to customize cost effective.
  • OEM/ODM services backed by 10 years' R&D experience.
  • UPS for Surveillance and PoE, PoE injector and Switch.
