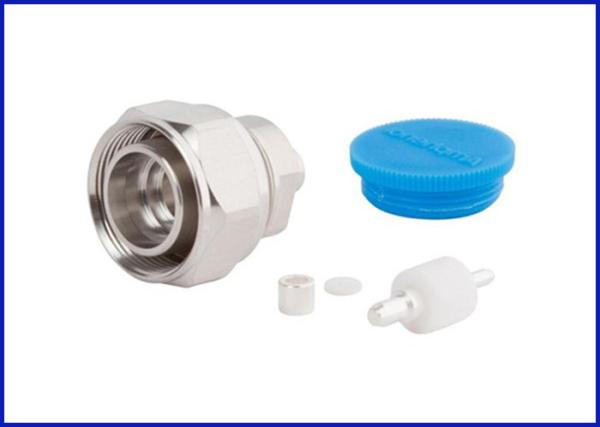

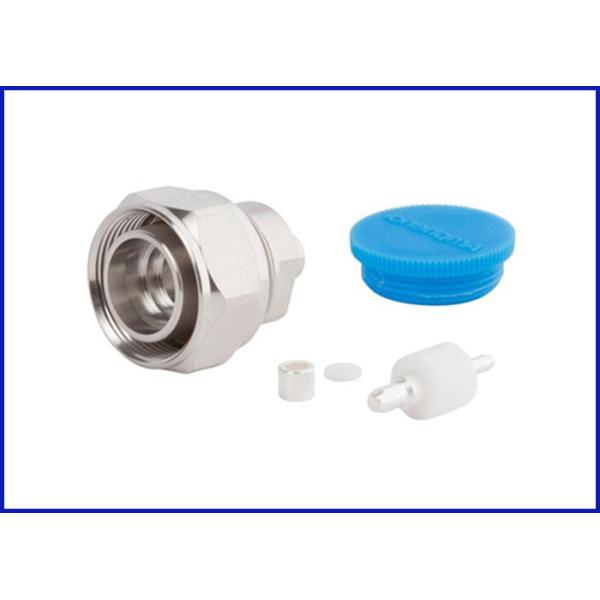

4.3-10 RF Connector M3 Threaded Four Hole Flange Straight Female
4.3-10 RF Connector M3 Threaded Four Hole Flange Straight Female
Specifications
Brand Name :
J&L
Model Number :
4.3-10
Certification :
ROHS ,CE.UL
Place of Origin :
DONGGUAN
MOQ :
500pcs
Price :
0.89USD
Payment Terms :
T/T full payment before production
Supply Ability :
1000000pcs/M
Delivery Time :
7-15 days
Packaging Details :
safe package
Application :
RF
Gender :
Male
Type :
DIN
Description

4.3-10 RF connector male socket straight into semi-rigid low PIM design connection. 141 line

Interface : Female
Brand : J&L
Connector Impedance : 50 ohm
Cable Impedance : 50 ohm
RF Operating Voltage , maximum(vrms) :707 V
DC Test Voltage : 2000V
Outer Contact Resistance , maximum : 0.3 mOhm
Inner Contact Resistance , maximum : 2 mOhm
Insulation Resistance , minimum : 5000 mOhm
Average Power : 0.6 kW @ 900 MHz
Peak Power , maximum : 10 kW
Insertion Loss , typical : 0.08 Db
VSWR Straight : 1.163(0.8-2.5GHz)
Shielding Effectivenss : 110Db
Outer Contact Attachment Method : Selfflare
Inner Contact Attachment Method : Push fit
Outer Contact Plating : Trimetal /Cu Sn Zn
Inner Contact Plating: Silver
Insulation : PTFE
O-ring : Silicone Rubber
Attachment Durability : 25cycles
Interface Durability : 500cycles
Interface Durability Method : IEC 6116916: 9.5
Connector Retention Tensile Force : 890 N /200
Connector Retention Torque : 5.42 Nm/48.00 in 1B
Pressurizable : No

4.3-10 RF Connector M3 Threaded Four Hole Flange Straight Female
