Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment
Specifications
Brand Name :
JANGLI
Model Number :
JL-250III
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD 10000-100000 per one
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per year
Delivery Time :
60days
Packaging Details :
vacuum wooden packing
Work capacity :
147,000 caps/hour(8 Oval, 450~500mg, 5rpm)
Die roller size :
150x250mm
Running speed :
0-8rpm
Power :
15kw
Size :
2200x1000x2200
weight :
1500kg
Plungers number :
20 24 28 plungers
Plungers size :
4mm 6mm 8mm 12mm 14mm
Packing :
Vacuum wooden
Description

Large Scale Big 10 Inch Softgel Encapsulation Machine For Pharmaceutical Softgel Capsules

Definition

Softgel gelatin capsules are one piece, hermetically sealed, soft gelatin shells containing a liquid, a suspension or a semisolid. Soft gelatin is mainly composed of gelatin, plasticizers, preservative, colouring and opacifying agents, flavoring agents and sugars. It is made by softgel encapsulation machine.

Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment

Different model for different capacity

Technical Specification JLH-250III JL-250II JL-150III JL-100II
Output 88200/h(20#OB; 6rpm) 58800/h(20#OB; 4rpm) 17280/h(20#OB; 3rpm) 8640/h(20#OB; 4rpm)
Die Roll Size Φ150×250mm Φ150×250mm Φ150×100mm Φ80×100mm
Die Roll Speed 0-7rpm 0-5rpm 0-4rpm 0~5rpm
Feeding Range 0-2mL 0-2mL 0-2mL 0-2mL
Feeding Variance ±1.5% ±1.5% ±1.5% ±1.5%
Overall Size 2200*1000*1900 2040*960*1900 1800*900*1750 1440×660×1350
Overall Weight 1800Kg 1500Kg 650Kg 400 Kg
Total Power 12kw 10kw 6kw 5kw
Electrical Power 380V/220V/480V/110V/240V/208V/400V/415V 50HZ/60HZ 3Phase

Main structure

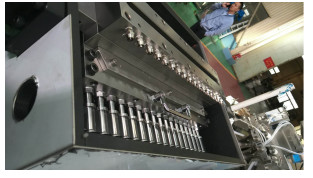

Medicine Pump system:The medicine is pumped from hopper to the wedge. It is the heart of the softgel machine. It can be design with different plunger depend on your requirement. 34 plungers is what we can made before.

Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment

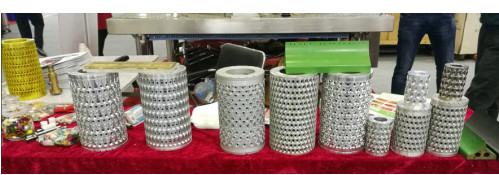

Die roll housing: softgel capsules form based on the die roll type. The number of pocket of die roll decide the final production capacity of machine. If you want get good product, you must choose high quality die roll.

Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment

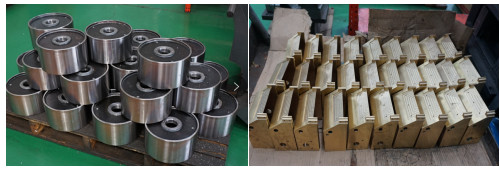

Spreader Box and drum:It is made from brass material. It combined with drum will lead the gelatin liquid into gelatin ribbon. Drum is the biggest parts of machine. However, if you want get high quality gelatin ribbon, you need control the temperature of drum accurately and precisely.

Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment

The other equipment you needed for production.

Gelatin melter: for making gelatin liquid.

Medicine tank: For preparation of medicine or filling material.

Service tank: As transfer tank for encapsulation

Tumble dryer: for softgel capsules shaping, when it is produced from machine. Or use it to finally dry the capsules
