Specifications
Brand Name :
JANGLI
Model Number :
JLPY
Certification :
PED
Place of Origin :
China
MOQ :
1set
Price :
USD 2000-200000 one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100sets
Delivery Time :
30-90days
Packaging Details :
wooden box
Material :
SS304 SS316L
Size :
100L 200L 400L 600L 800L 1000L 1200L 1500L 2000L
Operation way :
manual or automatic
Power :
2KW-30KW
Heating :
Steam heating & Water heating
Vacuum :
Yes
Temperature :
RT-150 degree
Pressure :
-0.1Mpa-0.1Mpa
Mixer speed :
0-45rpm
Description

Introduction:

The medicine mixing tanks are designed and manufactured based on the medicine preparation process or client’s specific requirement. The specific three-layers structure, inner layer, jacket and insulation layer, is applied to ensure a even heating and working efficient. Not only it can been used in pharmaceuticals industry, but also in cosmetics industry, food industry, liquid industry can been found it’s application.

Features:

  • High Speed Homogenizing: One kind of homogenizing head is available for making the medicine more even, which will be more helpful for suspension softgel encapsulation.
  • GMP and FDA requirements: It is accordance with GMP and FDA requirement of health standards and food containers SS standards.
  • Better Performance: Dissolving medicine fast, avoid precipitation, smooth operation.
  • Better Sealingness: The seal piece and seal ring can be used for more than 3000 continuous hours, during mixing to bear positive/negative pressure in the tank.
  • Best Design: All the design for this equipment is following GMP and many year’s experience.
  • High efficient mixing: installed with square blade make the medicine solution even.
  • Stable: with high speed homogenizer and mixer, the equipment still work stably.

Main Technical Parameters:

Technical Specification JLPL-600 JLPL-800 JLPL-1000
Valid capability 150L~600L 200~800L 300~1000L
Vacuum Degree 0.02~0.09Mpa 0.02~0.09Mpa 0.02~0.09Mpa
Structure Jacketed Stainless Steel Tank with Insulation (Hot Water Circulation)
Working Temperature 0~100℃ 0~100℃ 0~100℃
Power 4.0KW 5.5KW 7.5KW
Mixing Speed 0~48RPM 0~48RPM 0~48RPM
Homogenizing Speed 2800 RPM 2800 RPM 2800 RPM
Dimension Φ1100mmx1750 mm Φ1200mmx1820 mm Φ1300mmx1920 mm
Weight 750KG 870KG 1100KG
Jacket Work Pressure Atmospheric Atmospheric Atmospheric
Surface Mirror/Matte Polish Mirror/Matte Polish Mirror/Matte Polish
Mixing Type Frame and impeller combined; Homogenizing head can be added at the bottom of mixing tank
Equipment installed Vacuum Meter; Temperature Meter; Pressure Gage;Manhole;Lamp;Air Vent
Electric Voltage 380V;240V;220V; 50HZ; 60HZ (Customized)
Note Modification is available based on specific requirement

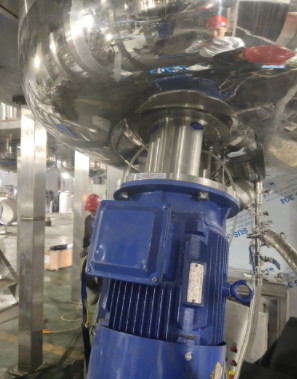

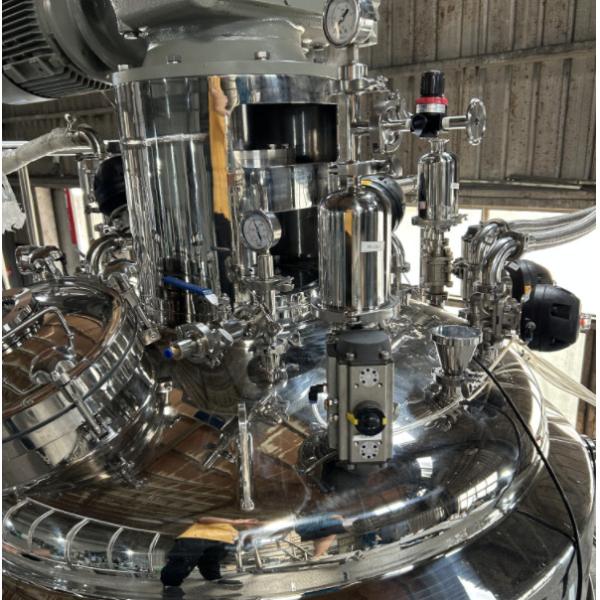

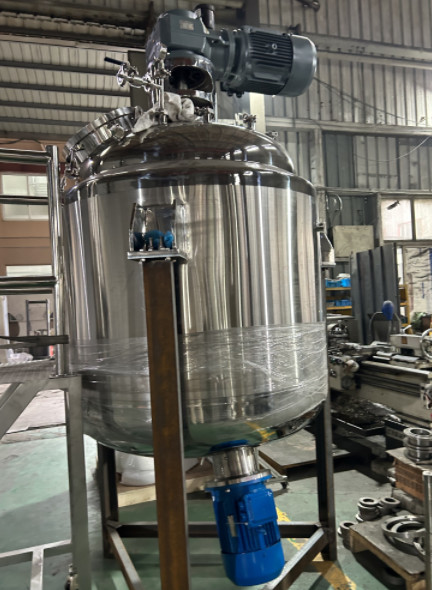

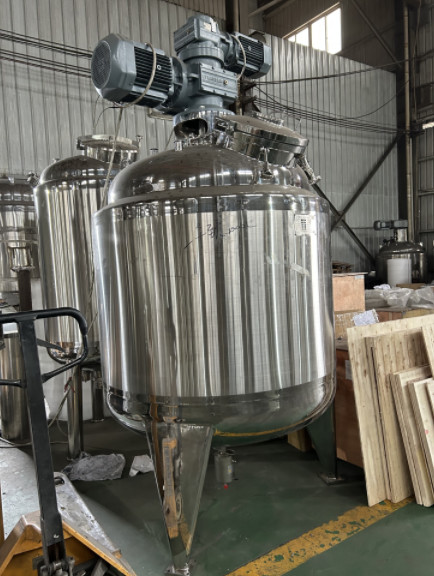

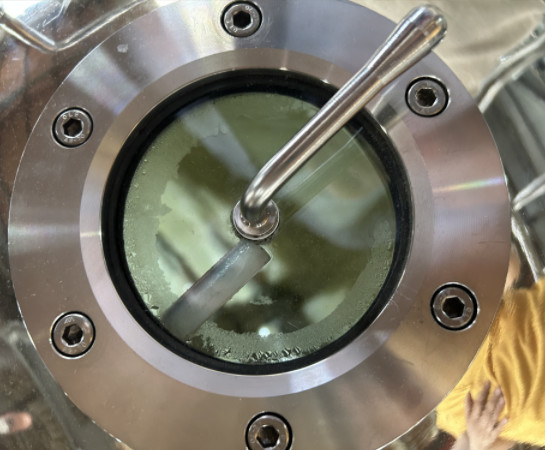

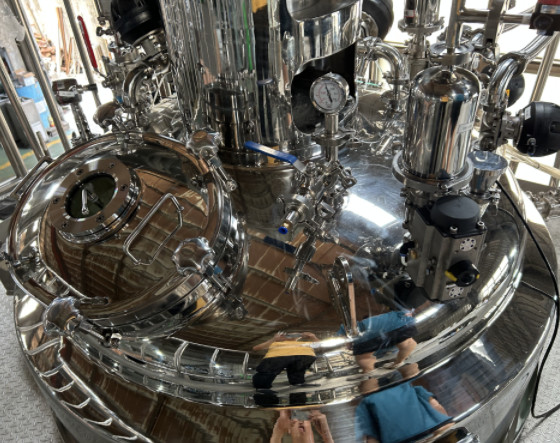

Detailed Pictures of the Machine:

.100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L

100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L100L 200L Medicine Softgel Medicine Mixing Tank 400L 600L 800L
