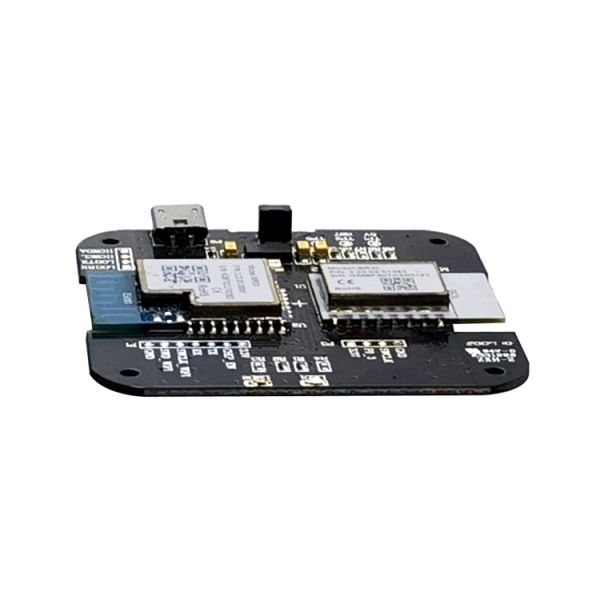

9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
Specifications
Brand Name :
ODM/OEM
Model Number :
ZT-GWZW-01
Certification :
CE/FCC/RoHS
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
20-35 work days
Packaging Details :
Inner packing,20pcs/carton,Inner packing
Chipset :
RTL8711AM
Business area :
Smart Home
Networking protocol :
Bluetooth
Networking method :
WiFi
Power supply :
USB
Maximum number of connectable terminals :
200
Description

9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server

Mini Bluetooth gateway smart home component router server realizes Bluetooth terminal and device interconnection

Product Description:

It is a wireless Bluetooth gateway used in networking applications in smart home networks. It can effectively connect to WiFi networks and realize the linkage of Bluetooth terminal devices with the help of cloud servers;

Product Features:

  • The networking mode supports static IP；
  • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
  • Built-in DHCP server, and static address assignment can be performed at the same time;
  • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
  • Built-in firewall function, supporting domain name filtering and MAC address filtering;
  • Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
  • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
  • Built-in static routing function, can build special network topology according to needs;
  • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
  • Full English configuration interface, equipped with a simple installation wizard (Wizard).
  • Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model ZT-GWZW-01
Appearance 9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server
Hardware specifications
Chipset RTL8711AM
SPI Flash 1Mbyte
SDRam 2Mbyte
Key 1x Pair Key
LED Power,All network ports have their own indicator lights;
Colour Black
Dimensions (L x W x H) 28*28*10；
Net weight 0.15kg
Gross weight 1.55kg
Electrical Specifications
Power input voltage 5V 0.5A
Maximum power consumption ＜3W
Power plug specifications Choose according to the destination country
Business specifications
Networking method static IP
Operating mode Router mode,
WEB language Englsh
Environmental specifications
Working temperature 0℃～40℃
Working environment humidity 10%～90% RH Non-condensing
Storage temperature -10℃～70℃
Storage environment humidity 5%～90% RH Non-condensing
Certified product
3C certification Passed, not certified；
CE certification Passed, not certified；
FCC certification Passed, not certified
RoHS certification Passed, not certified；
Other certifications No;
