Product Overview

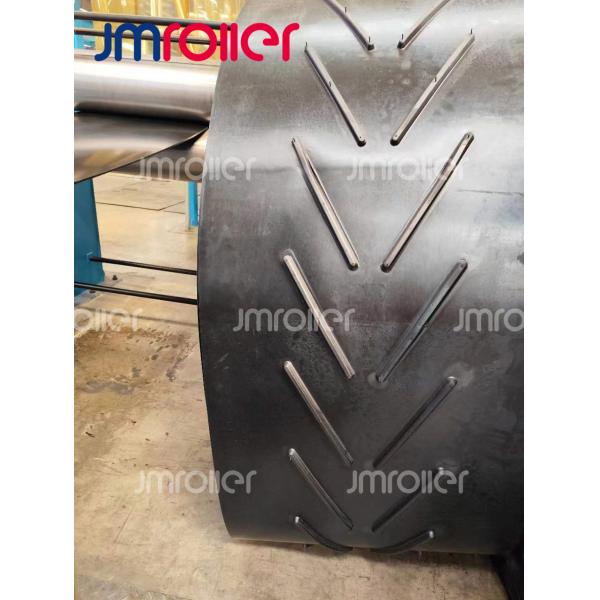

The Patterned Conveyor Belt is a high-strength rubber conveyor belt with raised patterns on its surface, specifically designed to prevent material slippage and enhance transportation efficiency. Made from durable industrial rubber, this belt is ideal for outdoor applications in mining and heavy industry. The unique patterned design increases friction, ensuring smooth material conveyance even on steep inclines or wet and oily surfaces. Whether transporting bulk materials like crushed stone and coal or bagged goods, this belt guarantees safety and efficiency.
Customization options are available for width, thickness, and ply layers to match your equipment and operational needs.

Technical Specifications

Note: The above specifications are standard. We offer full customization based on your specific requirements. Please contact us for tailored solutions that meet your industrial and mining needs.

Our advantages

• Excellent Anti-Slip Performance:
  The raised patterns (such as chevron, herringbone, or ribbed designs) significantly enhance grip, preventing material rollback. This belt performs reliably on inclines of 20°–40°, even in wet or oily conditions.
• Superior Wear Resistance:
  Constructed with high-strength industrial rubber, this belt offers outstanding resistance to abrasion, impact, and cuts, making it ideal for transporting sharp and coarse materials like ores and gravel. The reinforced rubber layers extend the belt’s lifespan, reducing maintenance costs.
• High-Temperature Resistance:
  Special heat-resistant rubber compounds ensure stability in high-temperature conditions (up to 120°C or more). Suitable for industries like steel manufacturing and cement production, where high temperatures are common. UV and ozone resistance make it durable for long-term outdoor use.
• Strong Reinforced Structure:
  The multi-ply fabric carcass (EP/NN) provides high tensile strength and impact resistance, ensuring minimal stretching and deformation during operation. This makes it ideal for heavy-duty applications in mining and bulk material transport.
• Customizable Pattern Design:
  Various pattern types and heights (chevron, V-shape, straight ribs, etc.) are available, allowing optimized material handling and improved transportation efficiency. Raised patterns increase material grip, reducing the risk of spillage. Custom sidewalls and cleats can also be added for specific applications.

Our Belt Applications

• Mining & Quarrying: Used for transporting coal, ores, and aggregates in mines, quarries, and excavation sites. The rugged rubber surface withstands sharp, abrasive materials and prevents material rollback.
• Heavy Industry: Ideal for steel mills, cement plants, and power plants. Suitable for conveying coke, clinker, limestone, and slag, ensuring durability in extreme conditions.
• Construction & Infrastructure: Commonly used in concrete mixing plants, construction sites, and bulk material transport, effectively handling sand, gravel, and construction debris.
• Ports & Terminals: Used in grain terminals, fertilizer handling, and mineral transportation, providing stability and anti-slip performance for incline transport.
• Other Industries: Applicable to agriculture, recycling, and warehousing, offering reliable inclined transport for materials such as food grains, plastic waste, and packaged goods.

Customization Options
Size & Dimensions: Available in various widths (300mm – 2600mm) and thicknesses, customizable to fit different conveyor systems.
Ply Layers & Strength: Available with 2–6 fabric layers (or more upon request) and reinforced tensile strength (EP100, EP200, EP300, etc.) to meet heavy-duty transport needs.
Pattern Design: Chevron, herringbone, ribbed, or custom pattern heights for optimal material handling on inclined surfaces.
Rubber Compound: Heat-resistant, oil-resistant, flame-retardant, and cold-resistant materials available for specific working environments.
Edge & Joint Options: Cut-edge or molded-edge designs available. Various splicing methods (cold bonding, hot vulcanization, mechanical fasteners) ensure secure installation and seamless operation.

If you have any questions, please feel free to contact us
