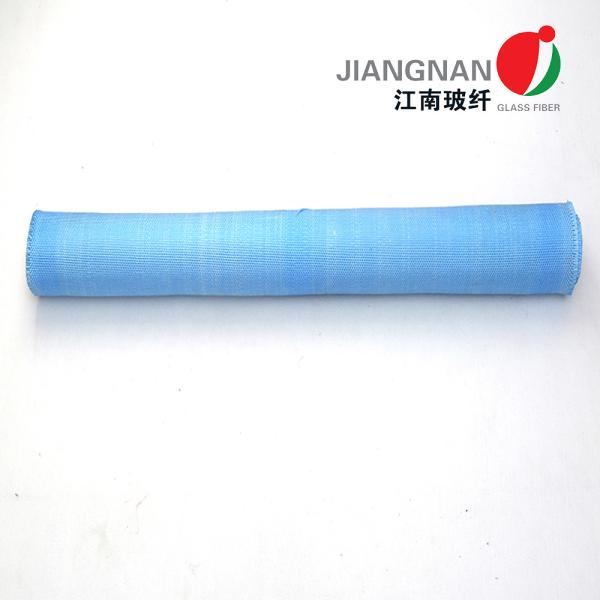

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free
Specifications
Brand Name :
Jiangnan
Model Number :
Pu Coated Fiberglass Fabric
Certification :
ISO 9001 2019, NFPA701
Place of Origin :
China
MOQ :
100 Square Meter/Square Meters
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, etc
Supply Ability :
300000sqm/month
Delivery Time :
3-10 days
Packaging Details :
Rolls packed in cartons loaded on pallets or according to customers' requirements.
Product Name :
Fire Curtain Fiberglass Cloth
Material :
100% Fiberglass
Coating :
Both Side PU Coated
Thickness :
0.42 Mm (0.016 Inch)
Weight :
460g/m2
Color :
Grey
Working Temperature :
-70°C to +300°C
Working Place :
Building,Hospital,Supermarket,meeting room,Airport
Description

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

Product Description:

PU coated glass fiber cloth is a kind of flame retardant cloth, single side and double side PU coated glass fiber cloth can withstand the instantaneous temperature of 600℃. At the same time, this material has very good wear resistance and oil resistance, as well as excellent weather resistance, water resistance, solvent resistance, superior cold resistance, aging resistance

Applications

Removable insulation jackets, flange spray shields, welding curtains and blankets, expansion joints, high-temperature gaskets and seals

Basic Fiberglass Cloth Technique Data Sheets

BASE FABRIC Base fabric style No. GF430P
(Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC
Coating Fire retardant, high performance, Grey/White/Black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F)

Silicone Coating Fiberglass Cloth

Knife Coating Silicone Coating Differences between Premier and Industrial Quality
Premier Quality Industrial Quality
1 Loomstate High-speed Rapier Weaving Machine Normal Dornier (small weaving defects might occur occasionally)
2 Silicone Wet, High-Quality Silicone Rubber Dry, Standard Silicone Rubber
3 Appearance Shiny and Tacky Dull but Smooth
4 Performance Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances
5 Application Mostly for Removable Insulation Jackets Mostly for Welding, But Also for Economic Removable Insulation Jackets

Product Type Thickness mm Weight g/m2 Weave
3732-PU1 0.43 455 Twill
3732-PU2 0.43 470 Twill
3784-PU1 0.8 870 8H Satin
3784-PU2 0.8 900 8H Satin
666 SS-PU1 0.65 660 8H Satin
666 SS-PU2 0.65 700 8H Satin

Other thicknesses can be customized upon request

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

Properties:

1. High temperature resistance up to 1000℃.

2. Strong fire resistant, good sealing property.

3. Good puncture resistance, good tear resistance, abrasive resistance.

4. High stability.

5. Chemical resistance.

6. No harm to human body, halogen free, asbestos free.

7. Environmentally friendly.

Why Choose Us?

Jiangnan factory area strictly follows the ISO9001:2015 and ISO14001:2015 management system certification. At the same time, we have invested 10 million US dollars in establishing a complete production line, from raw material weaving to finished product post-processing, to provide quality comparable to first-line products.

Jiangnan has established two mature production management systems:

  • Knitting → Warping → Weaving → Coating → Post-treatment
  • Customization→Design→Manufacturing→Quality Inspection→User Experience Tracking

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

(Beaming)

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

(Rapier weaving machine to weave glass fiber fabric)

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

(2 Meters Coating Equipment)

0.43mm Thickness PU Coated Fiberglass Fabric Two Sides Alkali Free

(Warehouse)

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q: What is your delivery time?

A: Generally we will within 30 days of delivery to you

4. Q: Can you produce customized goods?

A: Surely, we can be customized according to your demands.

5. Q: What kinds of payment you accept?

A: We accept T/T, D/A, L/C, D/P.
