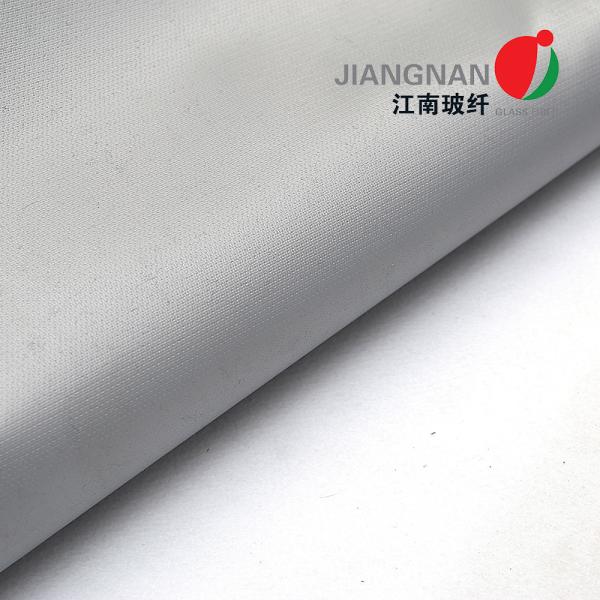

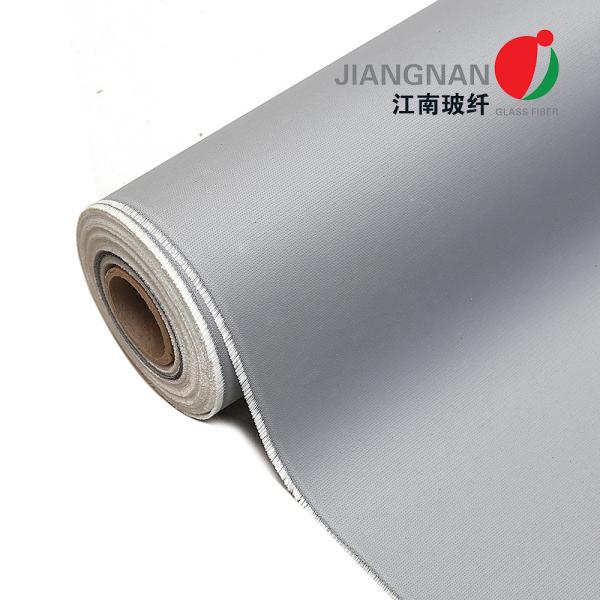

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance
Specifications
Brand Name :
Changshu Jiangnan Glass Fiber
Model Number :
Silicone Coated Fiberglass Fabric 550°C
Certification :
ISO 9001 2015
Place of Origin :
Jiangsu-China
MOQ :
Quantity: 500 Square Meters or Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 square meters per day
Delivery Time :
15 Working days after payment
Packaging Details :
Each Roll in a Carton Box, 20 Cartons/Pallet
Product name :
fireproof silicon coated fiberglass fabric and cloth
Weave :
Plain
Coating :
One Side Silicone Coating
Yarn Density :
G75 1/0,G75 1/0
Weight :
430g/m2+80g/m2 Silicone Coating
Color :
Red, Gray, Black, Yellow, Blue, Orange
Alkali content :
Alkali Free
Good features :
oxygen aging, climate ageing and oil.
Description

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance

1. Description:

Silicone-coated glass fiber cloth is made of glass fiber cloth coated with specially bonded silicone rubber on one or both sides. Physiologically inert silicone rubber, not only increases its strength, but also has the properties of heat insulation, fire resistance, and ozone resistance, and can prevent the effects of oxygen aging, weather aging, and oil.

Silicone Coating on FIberglass can be done in two ways:

Knife Coating: Used For liquid silicone generally for lower coating weight where the Silicone encapsulates the fiberglass fabric giving more softer fabric of lower thickness. [About 40-180g Silicone for each side]

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance

Calendaring: Dry Silicone is laminated onto fiberglass fabric giving high coating weight pick-up and a fabric that is stronger and thicker up to 5 mm thickness [About 500-1500g Silicone for each side]

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance

2. Technique Data Sheet

Characteristic Unit Data
Weave Structure 3*1 Twill
Yarn tex Warp Weft
EC9 136 1*0 EC9 136 1*0
Weight g/m2 430
Thickness mm 0.4
Theread Count per cm Warp 18 Weft 13
Coating One Side Silicone Coated
Coating Weight g/m2 80
Total Weight g/m2 510
Total Thickness g/m2 0.48
Tensile Strength N/ 2.5cm Warp 2200 Weft 1650

3. Much More Related Products

Product Type Thickness (mm) Weight (g/m2) Weaving
E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin

E3732-LG1 0.4mm 510 Twill
E3732-LG2 0.45mm 590 Twill
E666-LG1 0.6mm 750 Stain
E666-LG1 0.7mm 850 Satin
E3784-LG1 0.8mm 950 Satin
E3784-LG2 0.9mm 1050 Satin

3. Silicone Coating Cloth Features

STRONGER TENSILE STRENGTH

BETTER ABRASION RESISTANCE

BETTER AGING RESISTANCE

HIGH CHEMICAL RESISTANCE

HIGH OIL RESISTANCE

HIGH FIRE RESISTANCE: CAN WITHSTAND TEMPERATURES UP TO 500 F°

4. Application

thermal insulation

fire protection and as fire blankets

splash curtains

the outer layer of expansion joints

the outer layer of removable insulation jackets

5. More Images for Coated Fiberglass Cloth

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance

Grey Silicone Fiberglass Cloth Silicone Coated Fiberglass Cloth With Better Abrasion Resistance

6. Our Production Line









E3732-LG1
