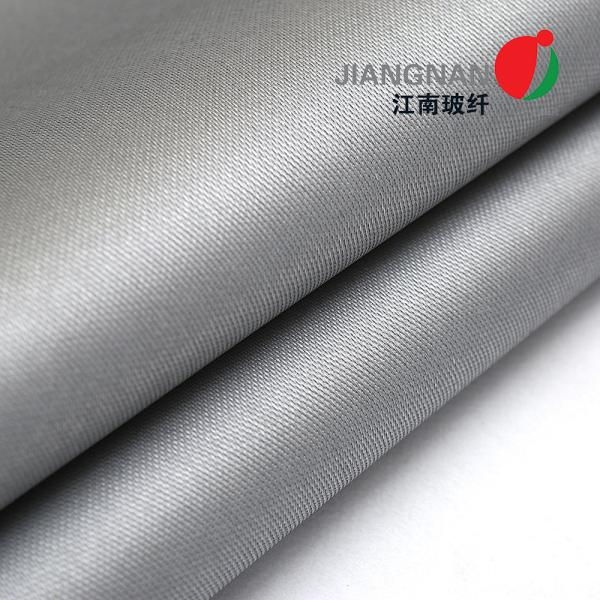

Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g

1. Description:

It is made of glass fiber basic fabric and coated with special compound grey silicone rubber on 1 or 2 sides. They have excellent electrical insulation, thermal insulation, and chemical resistance.

The silicone coating is durable and wear-resistant and can withstand high-temperature heat. It extends the service life while providing better oil and water resistance and electrical insulation than uncoated fabrics.

Silicone Coating on FIberglass can be done in two ways:

Knife Coating: Used For liquid silicone generally for lower coating weight where the Silicone encapsulates the fiberglass fabric giving more softer fabric of lower thickness. [About 40-180g Silicone for each side]

Calendaring: Dry Silicone is laminated onto fiberglass fabric giving high coating weight pick-up and a fabric that is stronger and thicker up to 5 mm thickness [About 500-1500g Silicone for each side]

Coating: Silicone rubber

Basic fabric: 3784 fiberglass fabric

Total Weight: 1050g/m2, 31oz/y2

Thickness: 0.88mm, 0.035inch

Width:1.5m, 5ft

Warp Yarn: ECG37 1/2

Fill Yarn: ECG37 1/2

Tensile strength:2600/2400

Temperature: up to 260℃

Color: Gray

Weave: Satin

2. Technique Data Sheet

3. Much More Related Products

4. Silicone Coating Cloth Features

1. Weather resistance: It is resistant to ozone, oxygen, sunlight, and aging, with a service life of up to 10 years.
2. Good electrical insulator, dielectric constant 3~3.2, the breakdown voltage between 20~50KV/mm.

3. High-temperature resistance, can work continuously from -70℃ to 280℃.

5. Application

1. Gasket and for packaging, food, printing, chemical, and rubber industries
2. Removable insulation jackets
3. Reinforced construction material
4. Fabric duct-work connector
5. Fire curtains
6. Welding blankets
7. Sealing Material

6. More Images for Coated Fiberglass Cloth

7. Our Production Line

8. RFQ

Q1: Are you a factory or a trading company?
Changshu Jiangnan Glass Fiber Co., Ltd is one of China's leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials.

Q2: What is your product range?
1. Coated glass fiber cloth;
2. Woven Fiberglass cloth
3. Glass fiber conveyor belt
4. Finished product (fire blanket & welding curtain)
5. Fiberglass Yarn

Q3: What are your delivery terms?
FOB, CFR, CIF, DDU, DDP, EXW,

Q4: How about your delivery time?
A: Generally, it will take 7 to 25 days after receiving your payment bank receipt. The specific delivery time depends on the items and quantity you ordered.

Q5: Can you provide samples?
Yes, we can provide a small sample for your quality test free of charge. The freight is payable.
