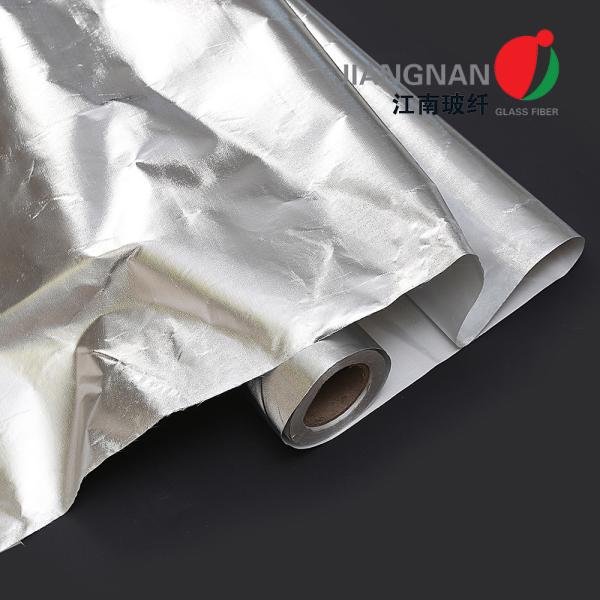

Heat Protection Aluminum Foil Laminated Fiberglass Fabric For Piping Outside
Heat Protection Aluminum Foil Laminated Fiberglass Fabric For Piping Outside
Heat Protection Aluminum Foil Laminated Fiberglass Fabric For Piping Outside
Heat Protection Aluminum Foil Laminated Fiberglass Fabric For Piping Outside
Specifications
Brand Name :
Jiangnan
Model Number :
Aluminum Foil Fiberglass Cloth
Certification :
ISO 9001 2015
Place of Origin :
CHINA
MOQ :
500 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Square Meters per day
Delivery Time :
14 Days after the Payment
Packaging Details :
Fire Retardant Aluminum Heat Barrier Foil Coated Fiberglass Fabric 1. Each roll use waterpoof bag then Pallet 2. Bulking package
Product Name :
Aluminum Foil Coated Fiberglass Fabric
Weave Type :
Plain Weave
Surface Treatment :
Aluminum Foil
Material :
Fiberglass + Adhesive + Aluminum Foil
Standing Temperature :
180 Degree C
Good Features :
Insulation, Good Heat Reflection, Abrasion Proof
Usage :
Insulation Cover, Heat Protection Cushions, Motor Vehicle Industry
Color :
Silver
Description

Heat Protection Material Aluminum Foil Coated Fiberglass Fabric For Piping Outside

1. Description:

The Aluminum Foil was used as heat shield on the glass fiber insulation protection layer, the glass fiber is used as the base cloth and the special fire-resistant adhesive to protect personnel or equipment by reflecting radiant heat. Our aluminum foil-coated glass fiber cloth has many excellent properties such as smooth aluminum foil surface, water impermeability, good air tightness and weather resistance, strong light reflection, good vertical and horizontal stretch resistance, and airtightness.

Product Construction
Materlal Composition Material Description Value Standard
Foil Aluminum

9 Micron
Adhesive Pressure Sensitive Oily Adhesive and Water Base Glue

Adjust according to different thickness of base fabric
Fiberglass Cloth Each difference Thickness Cloth

75-2000g

2. Table 1: Data Sheet of Basic Fiberglass Cloth

7628 Fiberglass Cloth
Item Model 7628 Fiberglass Fabric
Description Electronic Fiberglass Fabric
Weave Structure Plain Weave
Weight 200gsm
Thickness 0.2mm
Yarn Type Warp EC9 68 1*0
Weft EC9 68 1*0
Thread Count Warp 18 ends/cm
Weft 12 picks/cm
Break Strength Warp 438 N/cm
Weft 350 N/cm
LOI < 4%
Working Temperature ≤550℃

3. Table 2: Data Sheet of Final Product Al-7628

AL7628
Item Model Aluminum Foil Fiberglass Fabric Test Standard
Weave Structure Plain Weave
Aluminum Foil Thickness 9μm
Weight 210 gsm ASTM D3776-96
Thickness 0.2mm ASTM D1777-96
Thread Count Warp 18±1 ends/cm GB/T 7689.2-2013
Weft 12±1 picks/cm
Break Strength Warp 438 N/cm GB/T 7689.5-2013
Weft 350 N/cm
Color Silver
Working Temperature ≤300℃
Flame Resistance Non-Combustible
Advantages Radiant Thermal Reflective

4. What is the Aluminum Foil Fiberglass Cloth Application?

1. Heat insulation materials' heat sealing cover

2. Heat insulation and water vapor barrier requirements of warm and cool water pipe and heat insulation requirement of building.

Notice: The glue of aluminum foil fiberglass cloth is organic. If the temperature exceeds 180 degrees, the glue will volatilize, and the aluminum foil and cloth will separate.

5. Product Features:

1. Corrosion resistance is greatly increased

2. water vapor permeability smaller, strengthen the water vapor barrier effect

6. Detail images for Aluminum Foil Cloth

Heat Protection Aluminum Foil Laminated Fiberglass Fabric For Piping Outside

7: Other Related Products

Item no. Weave Density per cm Weight g/m2 Thickness Aluminum Foil Thickness Tensile Strength
N/5cm
Warp & Weft Warp & Weft

AL75

 Plain 12*8 75 0.1mm 7Micron 380*370

AL7628

 Plain 18*12 200g/m2 0.2mm 7Micron 2025*1620

AL3732

 3x1 Twill 18*12 430g/m2 0.43mm 7/18Micron 6000*4500

ALFW600

 Double Plain 15*15 600g/m2 0.55mm 7/18Micron 6000*5000

AL2025

 Plain 8*5.7 610g/m2 0.75mm 7/18Micron 2025*1216

AL-M30

 Plain 6*3.8 1020g/m2 1.2mm 7/18Micron 3000*2200

AL-3784

 Satin 18*13 880g/m2 0.9mm 7/18Micron 8000*6000

Other thickness and weight can also be customized according to your Requirement


75g<Weight<2000g


0.1mm<Thickness<3mm
