1.3mm Heat Insulation Fiberglass Cloth 920mm Width Woven Silica Fabric
1.3mm Heat Insulation Fiberglass Cloth 920mm Width Woven Silica Fabric
1.3mm Heat Insulation Fiberglass Cloth 920mm Width Woven Silica Fabric
1.3mm Heat Insulation Fiberglass Cloth 920mm Width Woven Silica Fabric
Specifications
Brand Name :
Jiangnan
Model Number :
High Silica Cloth
Certification :
ISO 9001 2015, BS EN 1869
Place of Origin :
Jiangsu-China
MOQ :
100 Meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
8000m2 Per Day
Delivery Time :
10~15days after got payment
Packaging Details :
Woven bag or Carton Box
Product name :
High Silica fiberglass fabrics
Thickness :
1.30mm
Width :
920mm
Weight :
1100g
SiO2 Content :
≥96%
Color :
White/Brown
Standing temperature :
1000 degree centigrade
Weave type :
Satin Weave
Application :
HIgh Temperature Insulation
Description

1.3mm Silica Fiberglass Fabric Woven Silica Fabric 1480℉ Temperature Resistant

1. Description:

High-temperature silica cloth is a flexible fabric composed of more than 96% silica, which has improved abrasion resistance and chemical resistance. It is very suitable for harsh temperature applications for thermal protection and fire protection. Silica cloth is easy to manufacture and can be used to make detachable insulation blankets, replace asbestos fabrics in welding, and in stress relief applications that require protection from high temperatures or molten metal.

2. Technique Data Sheets for High Silica Cloth

Item

Technical Requirement
Width(mm) 1000±10
Weave Style 12HS Satin
Warp Counts (ends/cm) ≥18
Fill Count ≥13

Warp Breaking Strength(N/Inch)

 ≥ 1200

Weft Breaking Strength(N/Inch)

 ≥ 800
Weight (g/m2) 1100 ± 50
Length (m) 50.0
Thickness 1.3 ± 0.1
Silica Content % ≥ 96
Linear Shrinkage% 5-10
Working Temperature 1200 ℃
Coating Pu 0.8-1%

3. Features:

The silicon fiber cloth made of pure silicon fiber yarn is suitable for continuous working temperature of 1000°C / 1830°F and temporary working temperature of 1200°C / 2200°F. This high-temperature resistance makes it very suitable for use in fire-fighting equipment, such as fire-resistant clothing. It is also effective for filtering molten metal, which is why it is used in high-temperature dust collection filters. Silica fiber cloth also has high flexibility.

4. Application:

High-temperature dust collection equipment and filters

Fire fighting equipment- fire curtains and fire garments

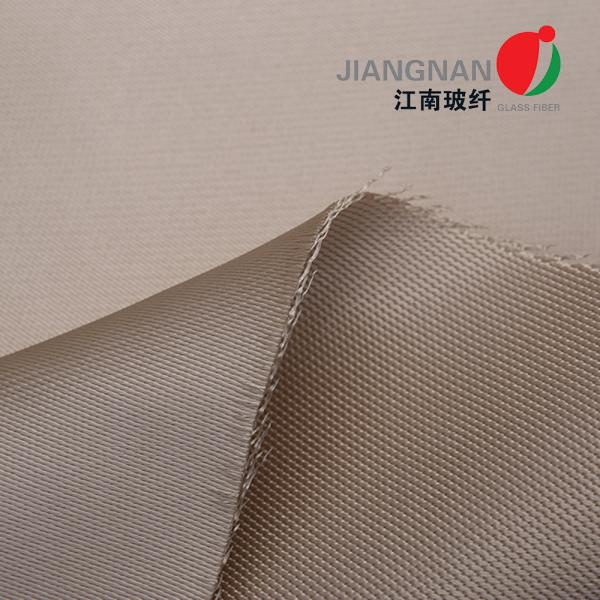

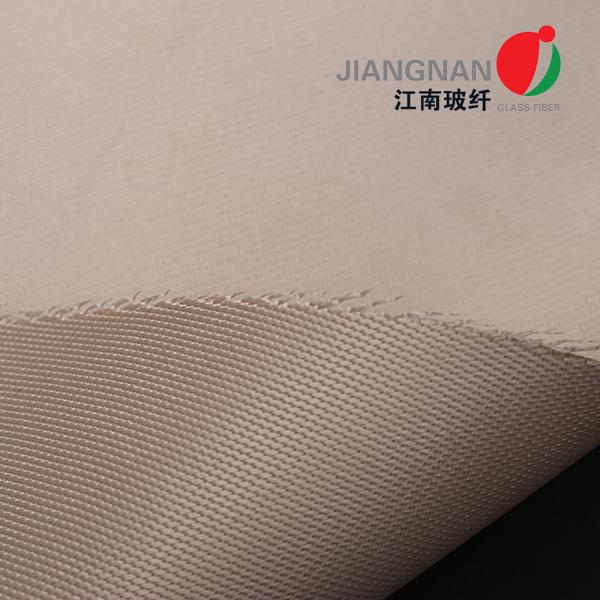

5. Product Detail Images

1.3mm Heat Insulation Fiberglass Cloth 920mm Width Woven Silica Fabric

6. More Silica Cloth Specification

Product Name Model Width mm Working Temperature℃ Weight g/㎡ SiO2 Content
High Silica JNHS-300-92 92 1000 300 ＞96%
High Silica JNHS-450-92 92 1000 450 ＞96%
High Silica JNHS-600-92 92 1000 612 ＞96%
High Silica JNHS-600-100 100 1000 612 ＞96%
High Silica JNHS-600-130 130 1000 612 ＞96%
High Silica JNHS-880-92 92 1000 880 ＞96%
High Silica JNHS-880-100 100 1000 880 ＞96%
High Silica JNHS-1100-92 92 1000 1100 ＞96%
High Silica JNHS-1100-100 100 1000 1100 ＞96%
Silica Cloth JNSC-450-100 100 800 600 70%±5%
Silica Cloth JNSC-600-92 92 800 600 70%±5%
Silica Cloth JNSC-600-100 100 800 700 70%±5%
Silica Cloth JNSC-600-152 152 800 700 70%±5%
Silica Cloth JNSC-1100-92 92 800 1100 70%±5%
Silica Cloth JNSC-1200-100 100 800 1200 70%±5%
Silica Cloth JNSC-1200-152 152 800 1200 70%±5%
High Silica Texturized Cloth JNSCT-42-92 92 1000 1450 ＞96%
High Silica Texturized Cloth JNSCT-42-100 100 1000 1450 ＞96%
