Specifications
Brand Name :
Jiangnan
Model Number :
C3732 Pu Coating
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
500 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
30000 square meters per day
Delivery Time :
15 Working Days After Payment
Packaging Details :
One Roll In Poly Bag
Product Name :
Polyurethane Coated Fiberglass Cloth
Width :
100, 120, 130, 150, 160, 180, 200cm
Total Weight :
430g/m2+15g/m2 Coaiting Per Side
Total Thickness :
0.45mm
Basic Cloth :
3732 Fiberglass Fabric
Yarn Typer :
E-glass or C-glass
Features :
Heat Protection, Welding Protection
Surface treatment :
Polyurethane coated
Description

0.45mm Grey 3732 PU Coated Fiberglass For Welding Spatter Sparks Protection

1. Description:

Polyurethane-coated fiberglass fabric is a woven fiberglass cloth substrate that has been coated on one side or both two sides with a specially compounded grey polyurethane coating. Mass per unit of this PU-coated glass fabric is about 460g/m2. The base cloth is cross twill weave 3732 fabric. It is 430g/m2 and 0.43mm thick. When coated with 15-20g/m2 grey PU coating on each side, the total weight per unit can be 460gsm, and thickness will be 0.45mm.

Jiangnan Polyurethane PU coated SMOKE cloth can withstand a continuous working temperature of 260oC and a short-term working temperature of 600oC. It has impressive fire and smoke applications due to its many useful characteristics such as being impermeable to gases while still allowing some light through. In addition, it is halogen-free, fireproof, and has high stability.

2. Table 1: TDS for Basic Cloth

3732 Fiberglass Cloth
Item Model 3732 Fiberglass Fabric
Description E-glass Industrial Fabric
Weave Structure 1/3 Twill Weave
Weight 430gsm
Thickness 0.43mm 0.017 inch
Yarn Type Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Thread Count Warp 18±1 ends/cm 45 Per Inch
Weft 12±1 picks/cm 33 Per Inch
Break Strength Warp 6000 N/5cm 666 lbs/inch
Weft 4500 N/5cm 500 lbs/in
LOI < 5%
Working Temperature ≤550℃

3. Table 2: Pu Coated Fiberglass Cloth Information

Item 3732 Pu Coated Fiberglass Cloth
Total Weight 460 g/m2
Thickness 0.45 mm
Color Grey White (Other colors need to be customized)
Working Temperature

Coating: -50℃ to +260℃

instantaneously up to 1100℃
Coating Polyurethane Coating On Both Sides
Width 100cm, 120cm, 130cm, 150cm, 160cm, 180cm, 200cm

4. Properties:

15-20g/m2 PU coating on both sides

Pu coating can be born 1100℃ instantaneously

Acid resistance, chemical corrosion resistance

Heat resistant, resist high temperature below 260℃

5. Application:

Fabric air distribution ducts;
Removable insulation cover;
Welding blankets
Welding Spatter Shield
Ductwork Connector
Thermal Insulation Jacket and Exhaust Blanket
Fire and Smoke Control System, like Smoke Curtain, Fire Curtain

6. Much More Choice for PU coating:

According to different usage scenarios, we also provide blended fibers fabric and other coated choices.

Type Thickness Weight
3732 with Double-sided Pu Coating 0.5mm 460±20
3732 with Double-sided Silicone Coating 0.5mm 540±20
3734 with Double-sided Pu Coating 0.5+mm 510±20
3734 with Double-sided Silicone Coating 0.5+mm 590±20
Stainless Steel Wire Insert Fiberglass cloth with Double-sided Pu Coating 0.6mm 650±20
800 with Double-sided Pu Coating 0.8mm 820±30
800 with Double-sided Silicone Coating 0.8mm 950±30
Other thicknesses can be customized according to your Requirements

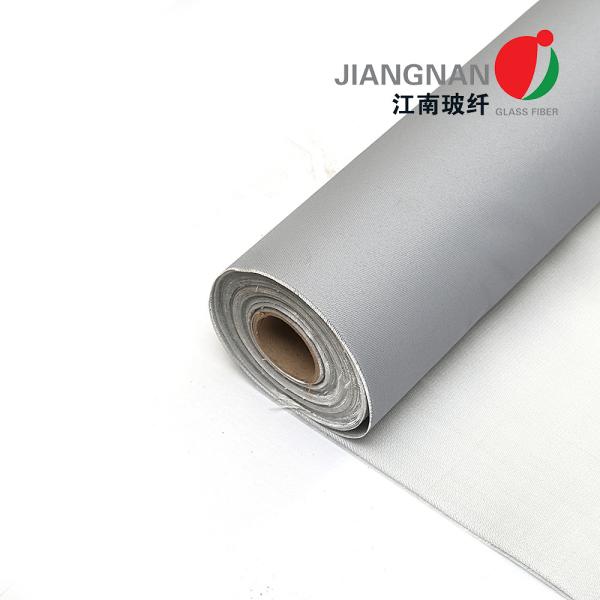

7. Detail Images for PU Coated Fiberglass Cloth
