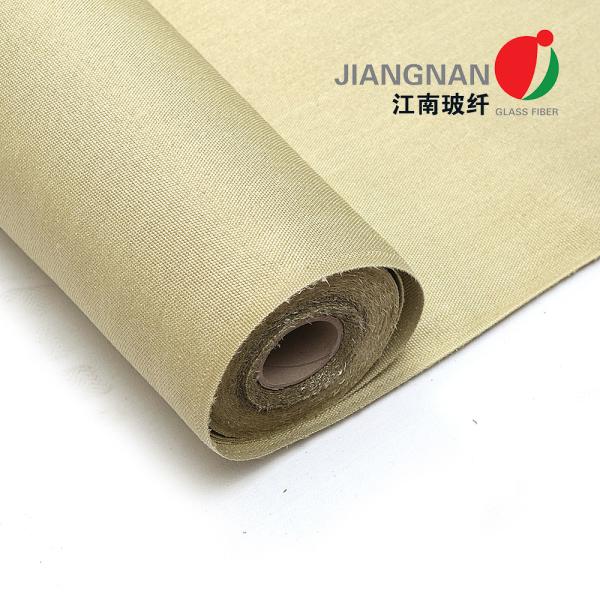

800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection
Specifications
Brand Name :
Changshu
Model Number :
Vermiculite coated 2025 Fiberglass Fabric
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
500 Meters
Payment Terms :
L/C, D/A, D/P, T/T, wESTERN uNION
Supply Ability :
10000 Square Meters per day
Delivery Time :
14 Days after the Payment
Packaging Details :
Carton Box，Woven Bag
Price :
Negotiable
Material :
Fiberglass Fabric and vermiculite
Color :
Yellow
Thickness :
0.6mm or other sizes can be customized
Width :
1000mm, 1520mm or other sizes can be customized
Performance :
Highest Temperature 850 celsius
Weave :
Plain
Description

800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection

Description

High temperature resistant fabrics woven from “E" glass fibers and coated with Vermiculite based film providing extended service temperatures up to 1500°F. It is a naturally occurring, micaceous hydrated magnesium-aluminum-silicate product, is asbestos free and 100% inorganic. Microscopic, disc-shaped platelets within the VERMICULITE film overlap and stack. These platelets are embedded within the fabric’s fiber bundles. Coated on the surface, these platelets form an insulating film that acts as an effective flame/heat barrier.

Technique Data Sheet For M30 Fiberglass Cloth with Vermiculite Coating

BASE FABRIC M30
(Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 1250 tex ETG 4.0
Weft ET9 1250 tex ETG 4.0
Construction
Warp 5 ± 0.5 ends/cm 13 ± 2 ends/inch ASTM D 3775-96
Weft 3 ± 0.3 picks/cm 8 ± 1 picks/inch ASTM D 3775-96
Weight 1000 ± 50 g/m2 29.41 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.3 ± 0.1 mm 0.05 ± 0.005 inch ASTM D1777-96

Features:

Vermiculte has a service temperature of 1500°F and standard 2025/9383 (electronic glass) has a service temperature of 1000°F. At temperatures in excess of 1000°F, the VERMICULITE finish insulates the glass while the material becomes brittle; Vermiculte will not melt or shrink at temperatures up to 1800°F and will continue to function as an effective flame/insulation layer . Even under direct flame, these fabrics are odorless and virtually smoke-free.

Applications

Fire blanket

Smoke door

Flexible sleeve

Reusable thermal insulation sheath

Thermal insulation mattress

Flexible duct

Much More Detail Images

800 ℃ Vermiculite Coated Fiberglass Fabric Cloth 2025 For Welding Protection

Other Related High Temperature Resistance Coating Fiberglass Cloth

Coating Type Fiberglass Type Thickness Weight Temperature Resistance
Vermiculite Coated 2025 0.6 600 800
M30 1.2 1080 800
Graphite Coated 620 0.8 830 700
M30 1.2 1080 700
3786 1.3 1350 700
Calcium Carbonate Coated M30 1.2 1080 700
