IP67 5 Pin 300VAC 20A Waterproof Male Female Connectors M19
IP67 5 Pin 300VAC 20A Waterproof Male Female Connectors M19
Specifications
Brand Name :
Jnicon
Model Number :
M19
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Product name :
2Pin waterproof connector
Connection Type :
Push locking
IP level :
IP67
Rated current :
20A/300V
Description

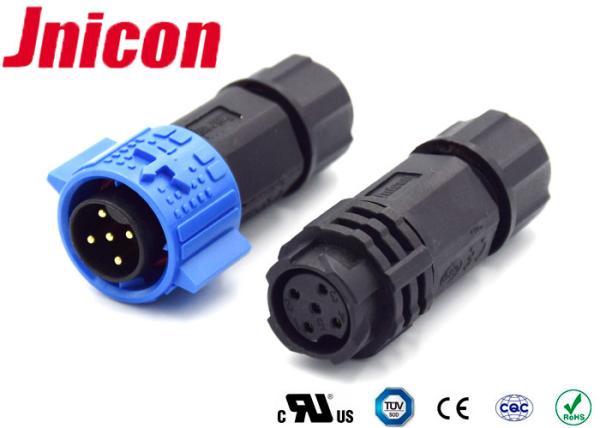

Circular Connector M19 Waterproof Male Female 5Pin Plug

Operation Parameters
Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 6.5mm ~ 10.0mm
Max.Cable Cross Section Area 0.3mm2 ~ 1.5mm2

Technical Specification

Connector Model: M19 waterproof connector 2pin
Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm(18AWG-12AWG)
Core number: 2 pin to 22pin
Rated current (A): 20A
Operating voltage (AC.V.rms): 300V
Withstand voltage (AC.V)1min: 1500V
Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Service Cable length could be customized

Main characteristics:

Sealed against dust and fluid (IP67)
Vibration resistance, impact resistance, stretching resistance
Dust cover to male and female are available

Application industries:

Stage equipment The smart grid LED lighting
Medical equipment Battery charging Automation
Solar energy Ship equipment Agriculture
Electric power equipment Vehicles Ebike/motorcycle
Communications Pool lights Transportation

Features

1. 2pin, 3pin, 9pin, 22 pin are available.

2. The max.cable diameter: 11.0 mm.

3. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

4. protection level: IP67

5. Screw locking style,easy to assemble. It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
