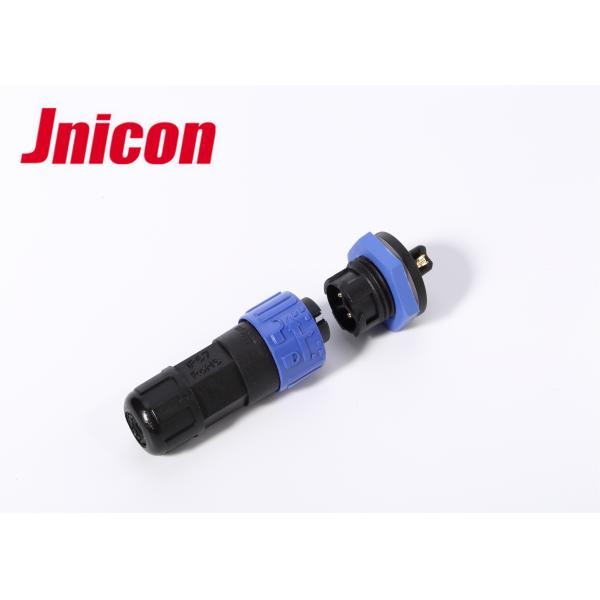

Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount
Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount
Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount
Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Plug Socket
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product name :
3 Pin LED Waterproof Plug Socket
current :
10 A
voltage rating :
300 V
cable gauge :
20-18 AWG
contact diameter/number :
∅ 1.5mm
protection level :
IP67
Description

Jnicon 3 Pin LED Waterproof Plug Socket 10A Push Locking Panel Mount Connector

Description of 3 Pin panel mount Waterproof plug with socket connector:

• waterproof plug socket connector of current/ voltage are 10 A/ 300V.

• The waterproof rating is IP67

• multi-pins are available (2-8 pins) and for varies industrial demands.

• Screw locking style and push locking,easy to assemble.

• High current application safety and stable wire.

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Specifiction of 3 pin waterproof plug socket connector

3 pin waterproof plug socket connector
Connecting mode push Lock connect
Protection level IP67
Contact diameter×Qty Φ1.5×3
Current rating(A) 10 A
Operating voltage 300 V
Temperature rating -40°C~105°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Main characteristics
Sealed against dust and fluid (IP68/IP67)
Vibration resistance,impact resistance,stretching resistance

Application:

Waterproof plug socket connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

Detail picture

Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount

Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount

Jnicon LED Waterproof Plug Socket 10A 3 Pin Push Locking Panel Mount
