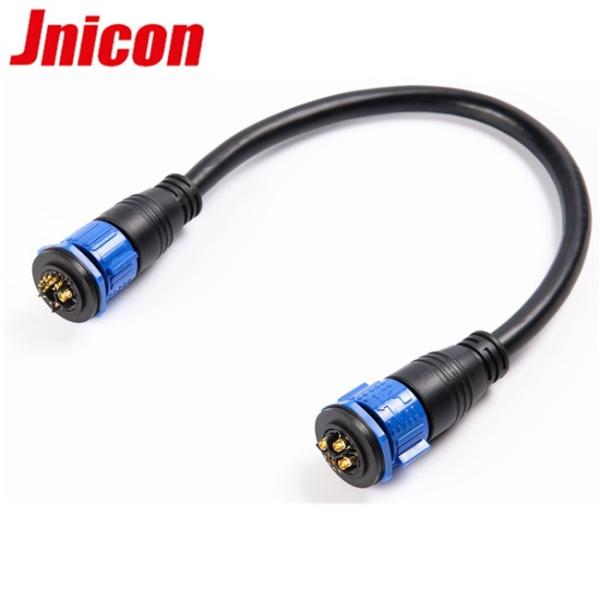

Panel Mount Electrical Round Multi Pin Connectors 3 Pin Power And 9 Pin Signal
Panel Mount Electrical Round Multi Pin Connectors 3 Pin Power And 9 Pin Signal
Panel Mount Electrical Round Multi Pin Connectors 3 Pin Power And 9 Pin Signal
Panel Mount Electrical Round Multi Pin Connectors 3 Pin Power And 9 Pin Signal
Specifications
Brand Name :
Jnicon
Model Number :
3+9pin waterproof connector
Certification :
UL,TUV,CE,ROHS,CQC
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Poles :
3+9 pin
Connector type :
Panel mount type
Rated current :
50Amps to 3 pin
Cable range :
6mm2 max
Function :
Signal and power connection
Warranty :
5 years
Description

Jnicon Round Multi Pin Electrical Connectors With 3 Pin Power And 9 Pin Signal

Connector Details:

1. Push pull waterproof connector

2. IP67 protection level

3. 3+9 pin waterproof connector , 3pin for power and 9 pin for signal

4. Multicolor available, such as Blue,yellow,black

5. Plug and socket are available

6. Panel mount type connector

3+9 pin waterproof connector is not only for power also for signal connection, we combined power and signal together to save your cost and more easy to connect your application, solder type and PCB verison are available. We could process the cable for you if you need to save your labor cost.

3+9 pin combined connector could be widely used for commercial industrial applications, such as signal control box, heavy equipment, automatic, robot etc. OEM and ODM accepted.

Technical information :

Core: 3+9 cores(12pin)
Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 0.5-6mm2
Cable diameter range: 6mm-16mm
Rated current (A): 50-5A
Operating voltage (AC.V.rms): 125V
Withstand voltage (AC.V)1min: 500V
Plating: Golden plating

Stable Reliability :

Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0

More advantages:

Sealed against dust and fluid (IP67)
Vibration resistance, impact resistance, stretching resistance
Dust cover available

RFQ

Q: Which certification you have to your connectors, i want some TUV listed waterproof connectors.

A: Hi dear, TUV,UL,ROHS,CE,CQC are available to our connectors, so TUV is no problem .

Q: How does your factory do regarding quality control?

A: We will pay much attention on every piece product and will do international certification and test according to customer requirements, such as UL, CE, CCC. We are planning to increase TUV ,VDE certification this year.

Q: Do you have a guarantee of your product quality?
A: Yes, we provide warranty for 3 years.
