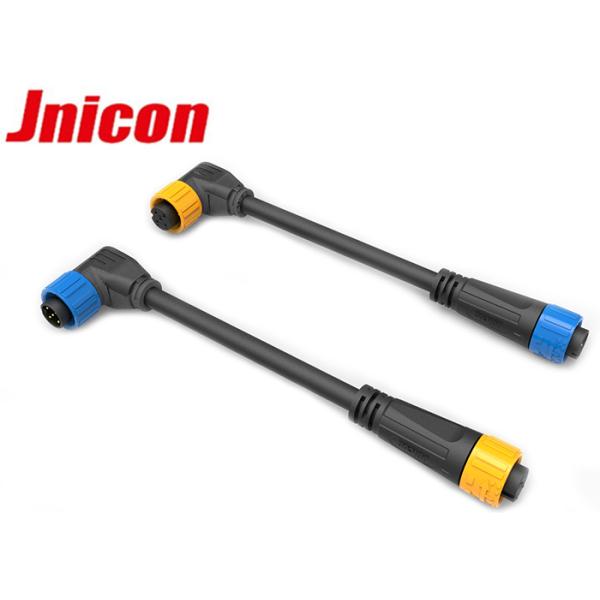

Right Angle Waterproof Male Female Connector , 5 Pin Waterproof Battery Connector
Right Angle Waterproof Male Female Connector , 5 Pin Waterproof Battery Connector
Specifications
Brand Name :
Jnicon
Model Number :
M19
Certification :
UL,CE,TUV,ROHS
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/days
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Product name :
M19 90 degree male female connector
Connector type :
right angle waterproof connector
Waterproof level :
IP67
Rated current :
20A max
Cable spec :
16AWG-12AWG
Description

5 Pin Right Angle Waterproof Male Female Connector , Power Battery Connectors

Description:

Right angle connectors is a good option for limited space application or PCB mount, also could be used for electrical battery chargring, cable length and current could be customized according to your applications.

1. Push locking right angle connector

2. Protection level: IP67

3. Connector type: overmolded male female

4. Cores: 2 pin,3 pin and more cores are optional

5. Certification: UL,TUV,RoHS,CQC,CE

6. Gold-plated contact, high performance of corrosion resistance and electrical.

Technical Spec

Core number: 5 pin
Connector type : right angle overmolded connector
Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-11mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V

Waterproof Connector's benefits :

1. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

2. With environmental protection material:high performance engineer plastic is good for environmental protection.

Application industries:
Stage equipment The smart grid LED lighting
Medical equipment Battery Automation
Solar energy equipment Ship equipment Agriculture
Electric power equipment Vehicle equipment Ebike/motorcycle
Communications equipment Heavy machinery Transportation

Right Angle Waterproof Male Female Connector , 5 Pin Waterproof Battery Connector
