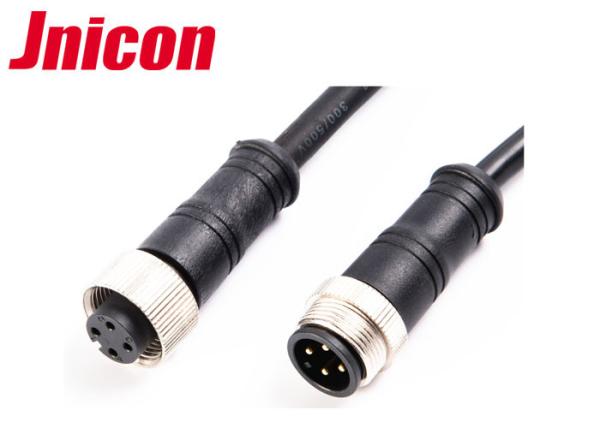

4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring
4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring
4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring
4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Male Female Connector
Certification :
UL/CE/TUV/CQC/RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal,Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag; 2.Carton; 3.As per customer's requirement
Name :
Waterproof male female Connector
Protection Level :
IP68
Pin :
4
Material of pin :
Copper alloy
Operating Current :
10A
Color :
Black
Description

Metal Locking Ring IP68 Waterproof Male Female Connector 10A Current For Light

Product Description

1. Waterproof male female connector

2. 4pin Screw locking type waterproof connector

3. Metal Locking ring for IP68 protection level

4. 10A current is supported

5. Widely apply for wash-wall lights

6. 3 years warranty

Choosing tips


If you are interested in our waterproof connectors, please kindly provide your requirements according the following factors:


1. The number of contact pin(2-5pin option);
2. The rated current,to determine the cores;
3. The current-voltage and the realization of the function, to determine the cores;
4. Select the appropriate clamp diameter and sheath;
5. The cable specification and length,depend on your application;

Product Parameter

Connecting mode: Screw
Protection level: IP68
Cable specification(power): 0.5mm2~ 1.5mm2 /20~16 AWG
Contact diameter×Qty: Φ1.5×4
Current rating(A): 10A
Operating voltage(AC.V.rms): 300V
Withstand voltage(AC.V)1min: 1500V

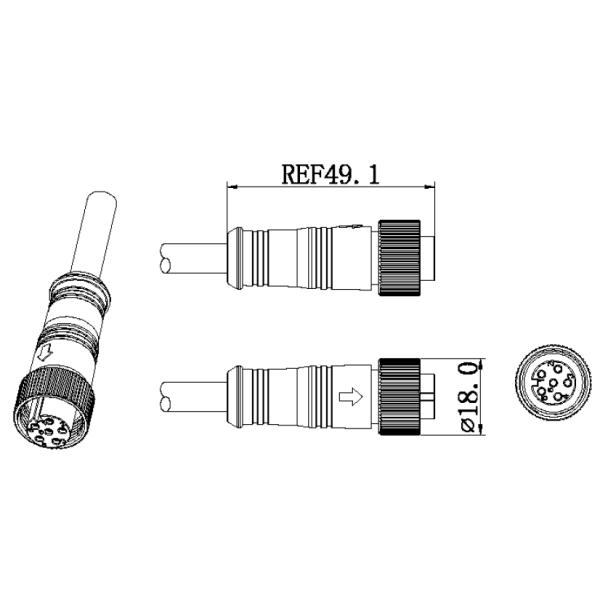

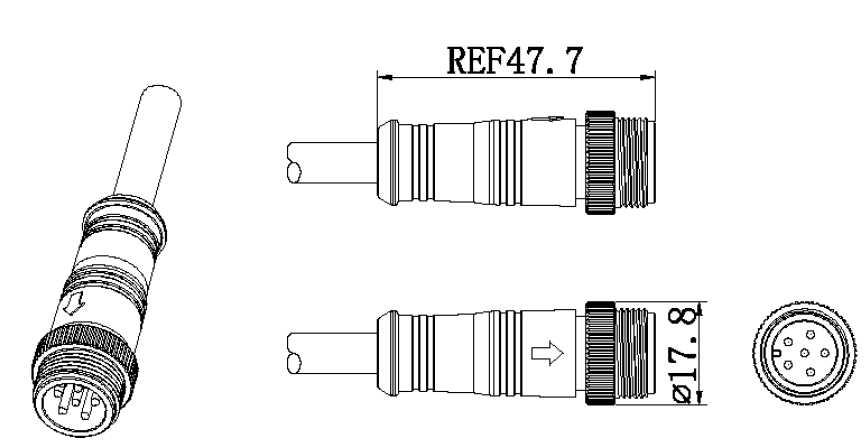

Product Dimention

4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring

4 Pin Waterproof Male Female Connectors Electrical Metal Locking Ring
