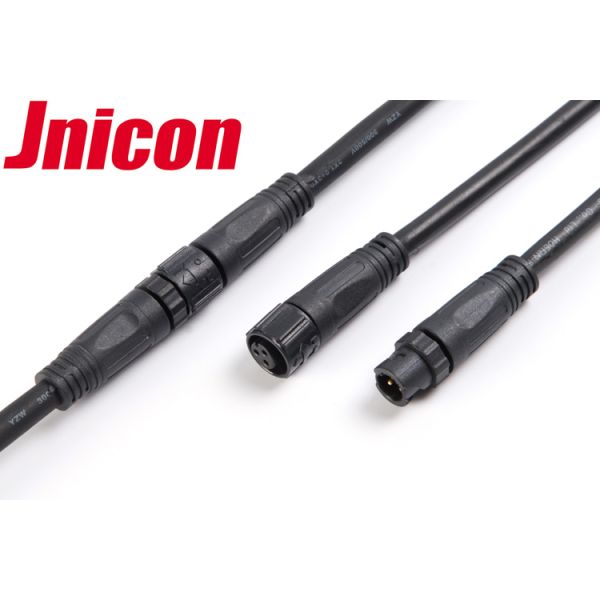

5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape
5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape
Specifications
Brand Name :
Jnicon
Model Number :
M12
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Current Rating(A) :
10A
Connection Way :
Screw locking
Operating Voltage :
300V
Assembly Wire :
Soldering
Color :
Sliver,Black
Contact Material :
Gold-Plated
Description

5Pin M12 Waterproof Male Female Connector Outdoor Round Shape IP68

Description of 5Pin M12 connector

M12 waterproof power connector is the perfect solution to make your own waterproof connection underwater well. Thanks to its screw locking structure and installation finish perfectly.This M12 waterpoof circular connectors is widely used for LED lighting, Communications Application,product coding machines,Electric power equipment,Communications equipment and Heavy machinery.

This 5pin male female connectors has a waterproof rating of IP68.Soldering is NOT required to attach the two cables inside each main body. Once each side is connected, the wiring is fully protected from the elements.

Main Characteristic:

  • ​IP68 Protection Level
  • 2pin,3pin,4pin,5pin available
  • Cable to cable type,cable to panel mount type
  • Cable over-molding
  • Any cable size and length available
  • Connection solution provided
  • 7*24H Online service
  • Local sales team available

Electrical Parameters Of M12 male connector

Number of Poles 5Pin
Current Rating 1A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.

Operation Parameters of M12 female waterproof connector

Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 6.5mm ~ 9.0mm
Max.Cable Cross Section Area 0.3mm2 ~ 0.75mm2

Technical Parameters of 5pin M12 waterproof connector

Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.

Drawing

5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape

5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape
