Jnicon 5 Pin Waterproof Male Female Connector IP67 Push Locking Connection
Jnicon 5 Pin Waterproof Male Female Connector IP67 Push Locking Connection
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Male Female Connectors
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product :
5 Pin Waterproof Male Female Connector IP67
contact diameter/number :
∅ 1.0mm
waterproof degree :
IP 67
Current rating :
8 A
diameter range :
MAX ∅9.0mm
withstanding voltage :
125V
Description

Jnicon 5 Pin Waterproof Male Female Connector Push Locking Connection IP67

Main features of 5 Pin Waterproof Male Female Connector:

• M16 series 2-8 pins are available and for varies industrial demands.
• High current application safety and stable wire. 0.75mm~0.5mm² wire for 5 pin M16 series Push Locking waterproof male female connector .

• the current/ voltage of waterproof male female connector are 8A/125V. the withstanding voltage is 1000V AC.
•​ Operate temperature: -45°C~+85°C

• OEM/ODM are accepted.


The specifiction of 5 pins waterproof male female connector

Specifications
Connecting mode push Lock connect
Protection level IP67
Cable specification 0.75mm² ~ 0.5mm² /20~18AWG
Diameter range MAX Φ9mm
Current rating(A) 8A
Operating voltage(AC.V.rms) 125V
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~85°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Contact pin Copper alloy(gold-plated)
Main characteristics
Sealed against dust and fluid (IP67/IP68)
Vibration resistance,impact resistance,stretching resistance


More detail:

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.

• Vibration resistance,impact resistance,stretching resistance.

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.


Application

► M16 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

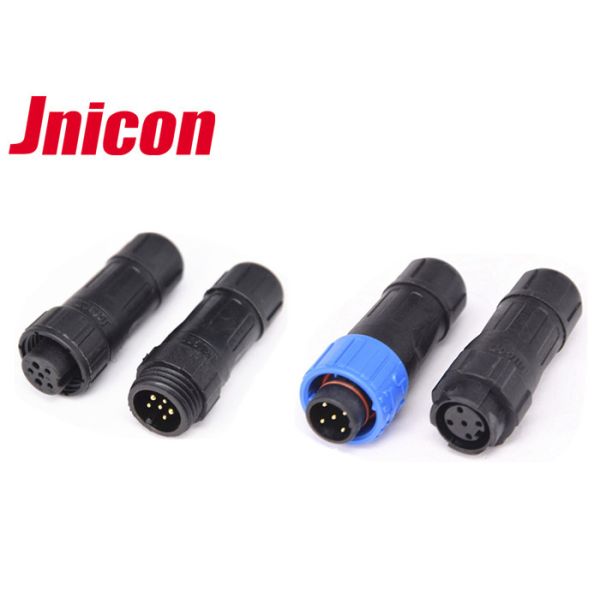

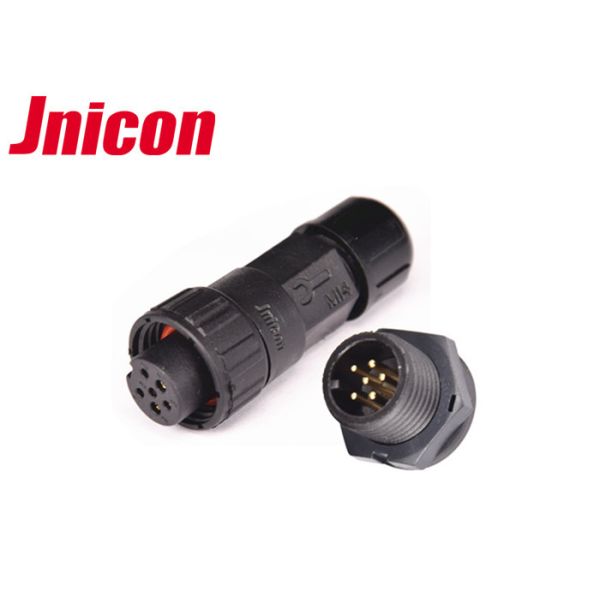

Product detail picture

Jnicon 5 Pin Waterproof Male Female Connector IP67 Push Locking Connection

Jnicon 5 Pin Waterproof Male Female Connector IP67 Push Locking Connection
