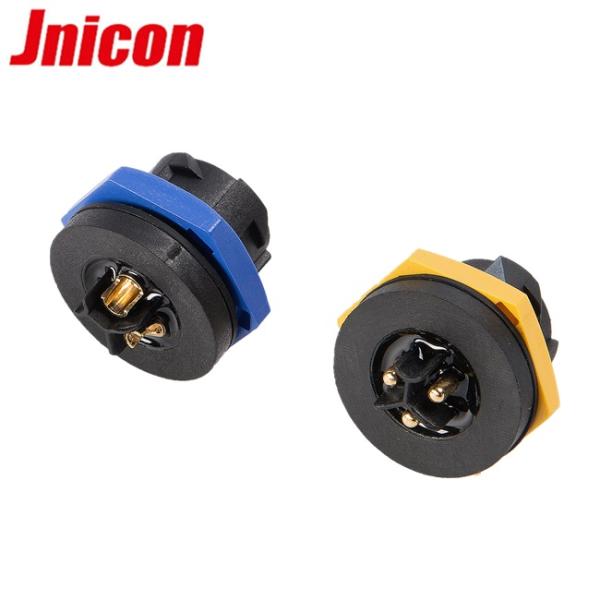

Multi Color Waterproof 3 Pin Male And Female Connectors Panel Mount 20A DC Power Socket
Multi Color Waterproof 3 Pin Male And Female Connectors Panel Mount 20A DC Power Socket
Specifications
Brand Name :
Jnicon
Model Number :
M19
Certification :
UL,CE,TUV,ROHS
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/days
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Product name :
3 pole power socket
Connector type :
Panel type socket
Protection level :
IP67
Rated current :
20Amps
Cable spec :
16AWG-12AWG
Description

Multi Color Waterproof Panel Mount Connector , 20A 3 Pin DC Power Socket

Description:

M19 waterproof panel type power socket is a high performance connector, easy to install on wall or PCB. Different version available, such as soldering , screw terminal, PCB version. We could process the cable on socket according to your reqquirements. Just please tell us your exact demands.

1. Push locking connector,easy operation and installation

2. Protection level: IP67

3. Connector type: assembly male female

4. Cores: 2 pin,3 pin and more cores are optional

5. Certification: UL,TUV,RoHS,CQC,CE

6. Male female gender

7. Gold-plated contact, high performance of corrosion resistance and electrical

Technical Spec

Specifications:
Connector type: Power Socket
Waterproof level: IP67
Cable specification: 18AWG-12AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V
Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Material:
Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel

Waterproof Connector's benefits :

1. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

2. With environmental protection material:high performance engineer plastic is good for environmental protection.

3. IP67 waterproof level to well protect your applications to be safe condition.

4. Long service life, 5 years warranty at least.

Applications to assembly male female connector

Stage equipment The smart grid LED lighting
Medical equipment Battery Automation
Solar energy equipment Ship equipment Agriculture
Electric power equipment Vehicle equipment Ebike/motorcycle
Communications equipment Heavy machinery Transportation

Multi Color Waterproof 3 Pin Male And Female Connectors Panel Mount 20A DC Power SocketMulti Color Waterproof 3 Pin Male And Female Connectors Panel Mount 20A DC Power Socket
