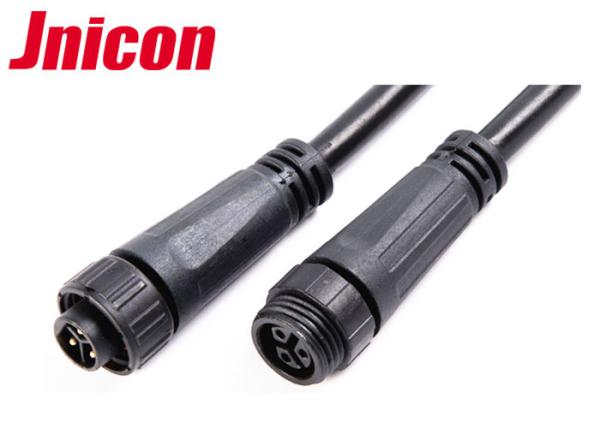

300V 10A Waterproof Cable Connector Male Female Over Molding With Screw Locking
300V 10A Waterproof Cable Connector Male Female Over Molding With Screw Locking
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Male Female Connector
Certification :
UL/CE/TUV/CQC/RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal,Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag; 2.Carton; 3.As per customer's requirement
Flame-resistance Rating :
UL94-V0
Cable Gague :
0.5mm2-1.0mm2(20-18AWG)
Connecting :
Screw Locking
Material of pin :
Copper alloy
Operating Current :
10A
Keyword :
Waterproof male female Connector
Description

300V 10A Over Molding Waterproof Male Female Connector With Screw Locking

Product Description

1. IP68 waterproof connector

2. Over molding type with cable

3. Screw locking type for quick installation

4. Cable length and specification can be customized as per customer's requirement

5. Waterproof male female connector using for LED lighting

Product Features

1. Rated voltage: 300V for 2~4Pin, 125V for 5~8Pin
2. Current Rating: 10A
3. Contact diameter: Φ1.5
4. Withstanding voltage: 1500V
5. Operating temperature: -40℃-105℃
6. Life: Plug 500 times should not appear harmful plug seats machinery and performance damage

Main characteristics
Sealed against dust and fluid (IP68)
Vibration resistance,impact resistance
Molded with cable
Application industries
Stage equipment
Medical equipment
LED equipment
Electric power equipment
Communications equipment

Our Services

1) IP68 waterproof in locked condition with ISO9001 management under efficient service

2) Provide free samples within 3 working days if it is normal product with existing tooling

3) Effective communication and rapid response

4) Early design-in capability,OEM, ODM are available

5) Any customization is welcome

6) 3 years quality assurance.

Product Dimention

300V 10A Waterproof Cable Connector Male Female Over Molding With Screw Locking
