2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting
2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting
Specifications
Brand Name :
Jnicon
Model Number :
M12
Certification :
UL , CE , CQC
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union, D/A, D/P, MoneyGram
Supply Ability :
1000 / day
Delivery Time :
3 ~ 5 days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Product Name :
M12 Female Waterproof Wire Connectors
Application :
Lighting
Gender :
Female Cable Connector
Contact of Pin :
2 pin Connector
Contact Material :
Gold Plating
Protection Level :
IP68 for Outdoor Envrionment
Description

2 Pin Waterproof Male Female Connector IP68 Plastic Connector For Lighting

Characterization of Goods

M12 2pin waterproof male female connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . In a word , you can apply the M12 waterproof wire connector in all of the lighting equipment , but the max current should be no more than 20 A , and the operating voltage is 300v . So when you want to buy M12 waterproof wire connector , you should confirm some details

  • NO .1 confirm the current & voltage
  • NO .2 confirm the pin of contact
  • NO .3 confirm the cable specification and cable OD
  • NO .4 confirm the material of cable and length of cable

( PS : if you don't know a lot about the connector , just contact me , then tell me about your requirement of connector , I will provide you with the solution )

Basic information of M12 Waterproof Connector
Material
Contact Brass (C3604)
Shell , insulating parts PA66+30%GF V0 / High-performance engineering plastics
Environmental
Flammability UL 94V-0
Operation temperature range -30℃~+80℃
Preservative temperature range -40℃~+85℃
4D Protection level IP67/IP68

Some Operating Datas About the M12 Waterproof Wire Connectors

Electrical characteristics & Mechanical

1 Electrical characteristics

  • Contact Resistance : 3mΩ max.
  • Insulation Resistance : 10MΩ min.
  • Withstand Voltage : 2000V AC There shall be no breakdown.
  • Rating : DC 50V 20A ( For each pin )

2 Mechanical

  • Cable OD : 6.0mm~11.0mm
  • Wise size : 0.3mm2
  • Life test : Mating & Unmating 500 cycles

Picture - M12 2Pin Female Waterproof Wire Connectors

2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting

M12 2Pin Male Waterproof Wire Connectors

2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting

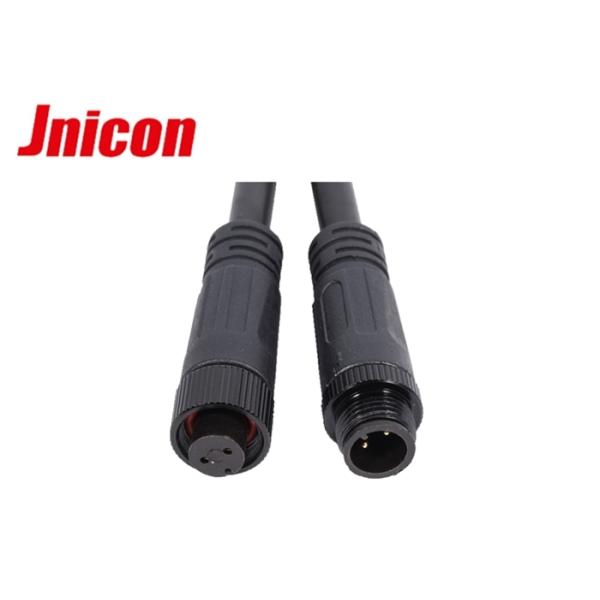

Male and Female Cable Connector IP68

2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting

Payment Method as Below

  1. Usually pay for the payment by T / T , Paypal
  2. L/C , D/A , D/P , Western Union are optional
  3. In general , we arrange production after payment
  4. Payment currency : US dollars or RMB
  5. Payment term: T/T full payment before delivery
