3 Pin Water Resistant Wire Connectors IP68 Electrical 20-16 AWG Cable Welding
3 Pin Water Resistant Wire Connectors IP68 Electrical 20-16 AWG Cable Welding
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof wire connectors
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product :
3 Pin Waterproof Wire Connector IP68
contact diameter/number :
∅ 1.5mm
waterproof degree :
IP 67
diameter range :
MAX ∅9.0mm
withstanding voltage :
300V
current rating :
10A
cable gauge :
20-16 AWG
contact material :
copper alloy
Description

Jnicon M12 3 Pin Waterproof Wire Connector Electrical Cable Welding IP68

Main features of 3 Pin Waterproof wire Connector:

• the current/ voltage of waterproof wire connector are 10A/300V. the withstanding voltage is 1500V AC.
•​ Operate temperature: -45°C~+85°C

• M12 series 2-5 pins are available and for varies industrial demands. male ,female are available.
• High current application safety and stable wire. 1.5mm²~0.5mm² wire for 3 pin M12 series Push Locking waterproof male female connector

• M12 series have high waterproof degree--IP68.


The specifiction of 3 pins waterproof wire connector

SPECIFICATION
Designation 3 pin male female waterproof wire connector cable welding
Model No. 57-100311-01
Item Specification
1. Electrical characteristics
1A Contact Resistance 10mΩ max.
1B Insulation Resistance 10MΩ min.
1C Withstand Voltage 1500V AC There shall be no breakdown.
1D Rating 10A 300V
2. Mechanical
2A Mating/Unmating force Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2B Life test Mating & Unmating 500 cycles
3. Material
3A Contact Plating gold plating
3B Contact material Brass (C3604)
3C Housing material PA66
4. Environmental
4A Flammability UL 94V-0
4B Operation temperature range: -30℃~+80℃
4C Preservative temperature range: -40℃~+85℃

More detail:

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Vibration resistance,impact resistance,stretching resistance.

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.


Application

► M16 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

► OEM/ODM are accepted. cable length can customized.

► Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.

Product detail picture

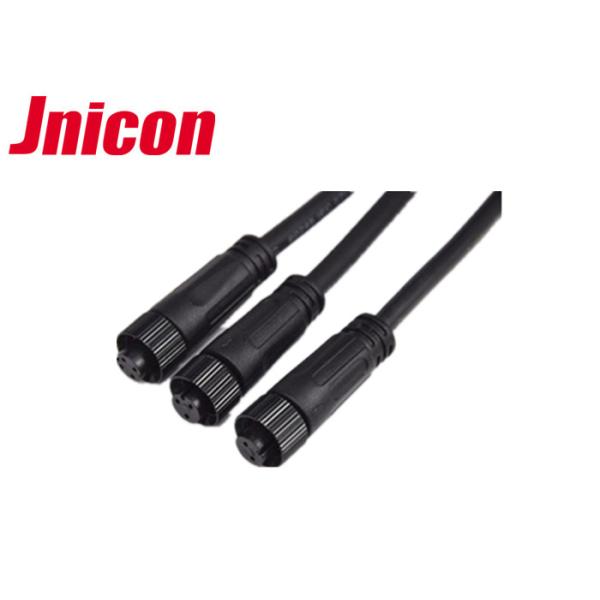

3 Pin Water Resistant Wire Connectors IP68 Electrical 20-16 AWG Cable Welding
