M16 2 Pin Waterproof Wire Connectors IP67 Cable Welding Impact Resistance
M16 2 Pin Waterproof Wire Connectors IP67 Cable Welding Impact Resistance
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof wire connector
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product :
2 Pin Waterproof Wire Connector IP67
contact diameter/number :
∅ 1.5mm
waterproof degree :
IP 67
withstanding voltage :
300V
current rating :
10A
cable gauge :
20-18 AWG
Description

M16 Series 2 Pin Waterproof Wire Connector , IP67 Cable Welding Connectors

Main features of 2 pin Waterproof wire Connector IP67:

• M16 series 2-8 pins are available and for varies industrial demands. male ,female and socket are available.

• the current/ voltage of waterproof male female connector are 10A/300V. the withstanding voltage is 1500V AC.
•​ Operate temperature: -45°C~+85°C
• High current application safety and stable wire. 1.0mm~0.5mm² wire for 2 pin M16 series Push Locking waterproof male female connector

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Vibration resistance,impact resistance,stretching resistance.

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

• OEM/ODM are accepted. cable length can customized.

The specifiction of 2 pin waterproof wire connector male female:

SPECIFICATION
Designation 2 pin male female waterproof date connector cable welding
Model No. 52-100211-01
Item Specification
1. Electrical characteristics
1A Contact Resistance 10mΩ max.
1B Insulation Resistance 10MΩ min.
1C Withstand Voltage 1500V AC There shall be no breakdown.
1D Rating 10A 300V
2. Mechanical
2A Mating/Unmating force Mating & Unmating Force: 10~30N
2B Life test Mating & Unmating 500 cycles
3. Material
3A Contact Plating gold plate
3B Contact material Brass (C3604)
3C Housing material PA66
4. Environmental
4A Flammability UL 94V-0
4B Operation temperature range: -30℃~+80℃
4C Preservative temperature range: -40℃~+85℃


Application

► M16 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

► Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.

Product detail picture

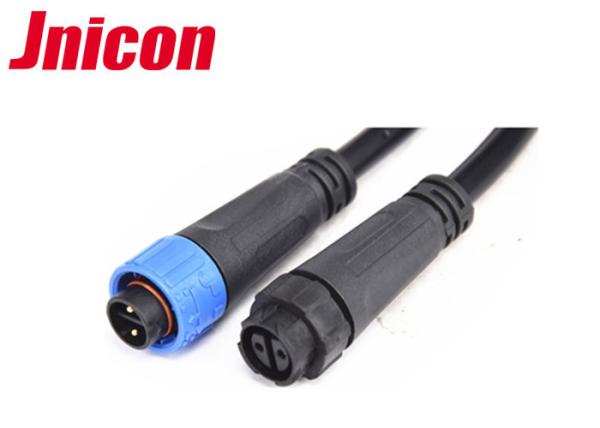

M16 2 Pin Waterproof Wire Connectors IP67 Cable Welding Impact Resistance
