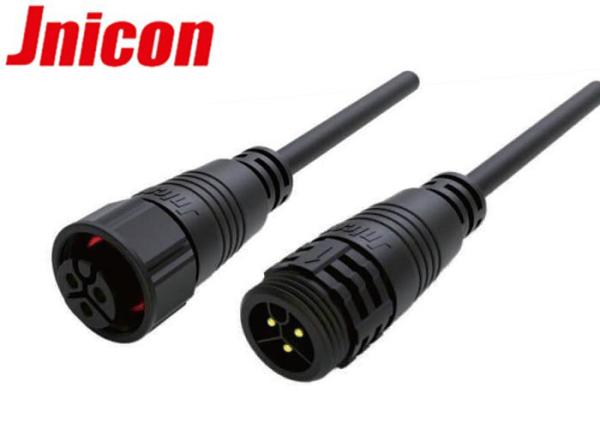

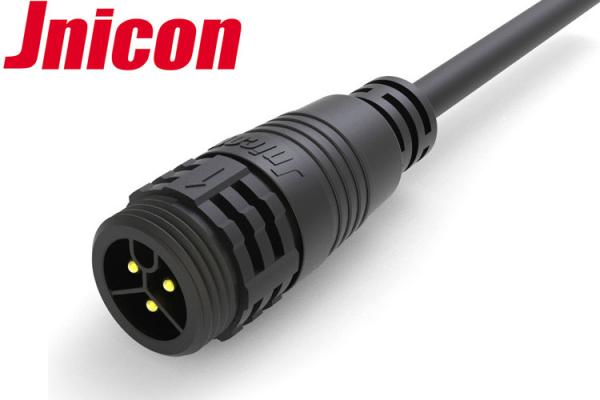

3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
Specifications
Brand Name :
Jnicon
Model Number :
M19
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Gender :
Male and female overmolded
Protection level :
IP68
Current Rating :
20A
Cable range :
12mm max
Connection method :
Screw locking type
Warranty :
5 years
Description

3 Poles Screw Locking Waterproof Wire Connectors , IP68 Power Cable Connector

Product Details

1. IP68 waterproof level connector

2. Waterproof cable connector sealed with cable.

3. 20A current rating

4. Multicores available

5. Screw locking connection method, easy to install and operate.

3 poles screw locking connectors is a high performance waterproof connector, could be used for underwater applications, such as pool light, underwater light, underwater robot, sea equipment, marine battery etc.

Technical Spec as below

Connector type : Sealed with cable/overmolded connector,other types available
Connector color: Black, blue, yellow
Waterproof level: IP68
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V

Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0

Application & benefits to waterproof wire connector:

1. Cable length could be customized according to your requirements, it's great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.

2. IP68 protection level, moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.

3. Screw locking design, easy connection, convenient install, DIY tools, N for Neutral wire, G for Ground wire, L for live wire.

3 Poles Waterproof Power Cable Connectors Screw Locking Male Female Overmolded
