Garden Waterproof Light Connector Jnicon Circular Male Female Easy Operation
Garden Waterproof Light Connector Jnicon Circular Male Female Easy Operation
Specifications
Brand Name :
Jnicon
Model Number :
M15
Certification :
UL,TUV,CE,ROHS,CQC
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Gender :
Waterproof wire connector
Core No :
2 cores
Connector type :
Assembly male female connector
Weterproof level :
IP68
Rated current :
10Amps
Warranty :
5 years
Description

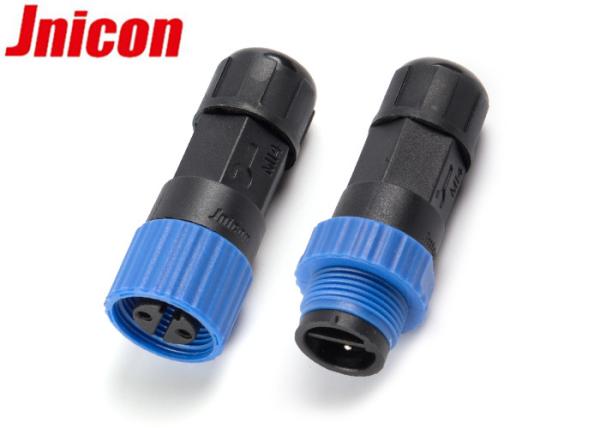

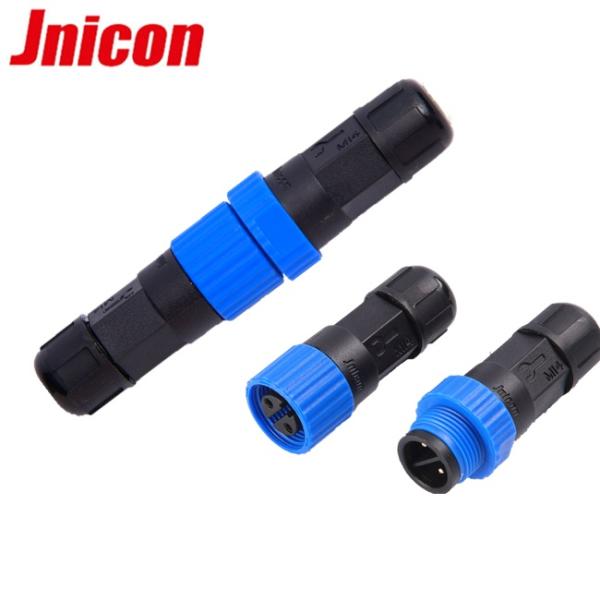

Jnicon Circular Male Female Wire Connectors , Waterproof Garden Light Connector

Product description

  • Screw locking connection way with IP68 waterproof level
  • Gold-plated contact, high performance of corrosion resistance and electrical
  • Easy operation and installation
  • Rated current is 10Amps
  • CE, UL approved
  • Standard led road lighting connector
  • 2pin,3pin,4pin and 5 pin available

Technical Spec

Connection method : Screw locking male female connector
Connector material: Nylon
Waterproof level: IP68
Cable specification: 20AWG-18AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 10A
Operating voltage (AC.V.rms): 500V

M15 waterproof connectors is a standard road lighting connector, assembly type connector makes your application and installation more flexiable and convenient, you could solder the cable by your side or we could do this for you to save your time and labor cost .

Y shaped and F shaped distribution connector are available to fit with male femele connectors, let's the power connection to be simple and fast. For more detatils just freely tell us.

High performance

Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0

Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable, 5 years warranty is provided.

Main characteristics

Sealed against dust and fluid (IP67/IP68)
Vibration resistance, impact resistance, stretching resistance
Dust cover available

Popular Applications

  • Stage equipment
  • The smart grid
  • LED lighting
  • LED display
  • Medical equipment
  • Battery charing
  • Automation
  • Solar energy equipment
  • Ship equipment
  • Agriculture
