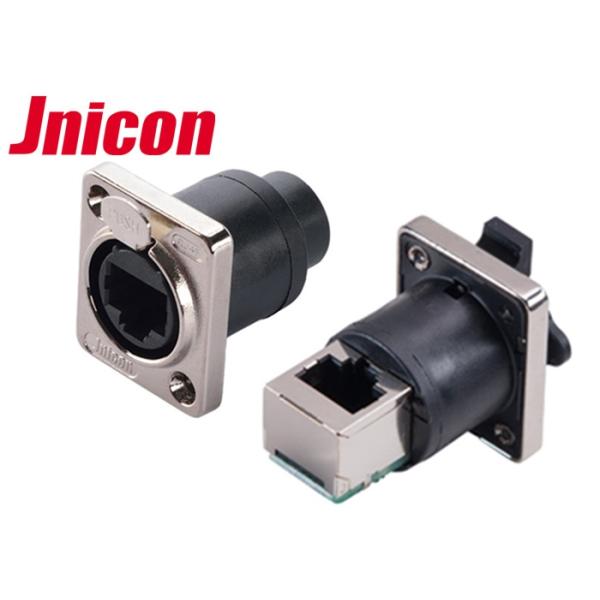

IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel
IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel
IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel
IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel
Specifications
Brand Name :
Jnicon
Model Number :
RJ45 Connector
Certification :
CE UL
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
10000 set / day
Delivery Time :
3 -5 days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Hosing / Shell :
Metal & Plastic
Contact :
8Pin
IP Class :
IP65 ( dust - proof and waterproof )
Connector :
Plug and Socket
Gender :
Male and Female
Description

Straight Type & 90 Degree Panel Waterproof Data Connector IP44 IP65

Description of Product

  1. Name of good : waterproof connector / signal waterproof connector / 8p8c dust - proof waterproof connector / PCB signal panel connector
  2. There are 2 parts of connector : male and female connector / plug and socket connector .
  3. Protection class : IP65 for outdoor environment , even wet environment for a long time
  4. Shell , insulating parts / shell / housing : PA66 / metal and plastic / high-performance engineering plastic
  5. Flammability : UL94 - V0 / anti - fire
  6. Connector type : plug and unplug / quick lock

Mechanical of Waterproof Data Connector

  1. IP rating : IP44 & IP65 . IP44 for indoor environment , IP65 for outdoor environment
  2. Cable specification : 0.15mm-0.2mm2
  3. Diameter / cable OD : φ5.5mm - φ7mm
  4. Operating temperature : -25℃ - 80℃

Application of Connector

Usually people call waterproof data connector as RJ45 waterproof connector , material include metal and plastic , anti -fire , waterproof and dust-proof . it wildly use in LED screen indoor or outdoor due to the good quality . Usualy there are 2sets signal plug and socket , and 2 sets male and female powercon connector in a 500 x 500 cabinet led screen . You can calculate the quantity according to your led screen box .

Parameter of Connector

Datasheet of Connector

Name Signal Panel Mount Connector
Number of contacts 8Pin
Resistance <60mΩ ( Male Connector + Single RJ45 Ethernet )
IP Rating IP44 / IP65

IP Rating IP44 / IP65
Cable Specification 0.15mm-0.2mm2
Diameter φ5.5mm - φ7mm
Temperature -25℃ - 80℃

FAQ

Q : I am interested in your connectors , do you have a price list ?

A : We do not have a price list of all the connectors . Because we have so many models and the price keeps changing due to market demand . if you need the price of any our connectors , please feel free to contact me , we will provide the corresponding price .

Q : Can you provide the samples ? Are the samples free ?

A : Yes , we can support 1 - 3 sets sample free one time for quality test befor bulk order , but the shipping cost need to be paid .

Q : What about the delivery time ?

A : In general , about 3 working days after payment received .

Q : What's the MOQ of connector ?

A : 1 piece is ok

Picture Display / Show

IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel

Waterproof / Dust - Proof Cap

IP44 IP65 Waterproof Data Connector , power Con Connector Straight & 90 Degree Panel
