IP65 Waterproof Data Connector , 8 Pin Header Panel Signal Cable Connectors
IP65 Waterproof Data Connector , 8 Pin Header Panel Signal Cable Connectors
Specifications
Brand Name :
Jnicon
Model Number :
RJ45 Connector
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
10000 set / day
Delivery Time :
3 -5 days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Hosing / Shell :
Metal & Plastic
Contact :
8Pin
Application :
LED Screen Signal Transmission
IP Class :
IP65 ( dust - proof and waterproof )
Color :
Black
Description

8Pin IP65 Waterproof Data Connector , Pin Header Panel Signal Screen Connector

Description of Product

  1. Name of good : waterproof connector / signal waterproof connector / 8p8c dust - proof waterproof connector / Pin Header Panel Signal Screen Connector
  2. For waterproof data connector applied in led screen , include male and female connector / plug and socket connector .
  3. Protection class : IP65 , can be applied in outdoor environment , even wet environment for a long time .
  4. Shell , insulating parts A66 / metal and plastic / high-performance engineering plastic
  5. Flame - resistanct class : anti - fire
  6. Method of connect : quick lock

Mechanical of Waterproof Data Connector

  1. IP rating : IP44 & IP65 . IP44 for indoor led screen , IP65 for outdoor led screen .
  2. Cable gauge : 0.15mm-0.2mm2
  3. Cable OD : φ5.5mm - φ7mm
  4. Operating temperature of connector : -25℃ - 80℃
  5. Application & Material : mainly apply for Signal Transmission ; use the Mental and Plastic / Metal & PA66 for shell / housing .

Application of connecot

Usually people call waterproof data connector as RJ45 waterproof connector , material include metal and plastic , anti -fire , waterproof and dust-proof . it wildly use in LED screen indoor or outdoor due to the good quality .

There are also 2pin , 3pin , 4pin , 5pin waterproof data connector , apply in landscape light , color light , washing wall light , stage light .

Parameter of Connector

Datasheet of Connector

Name PCB Signal Panel Connector
Number of contacts 8Pin
Resistance <60mΩ ( Male Connector + Single RJ45 Ethernet )
IP Rating IP44 / IP65

How to buy the connector from us ?

You need to confirm the information as following :

Firstly , confirm the number of contacts ; Second ,Confirm the protection level , for indoor led screen , IP44 is ok ; for outdoor led screen , IP65 is better ; Third , With data cable or not ; Forth , With signal male connector / plug or not ; Fifth , Confrim the quantity of order ; Finally , Any other special requirement , just contact me for answer.

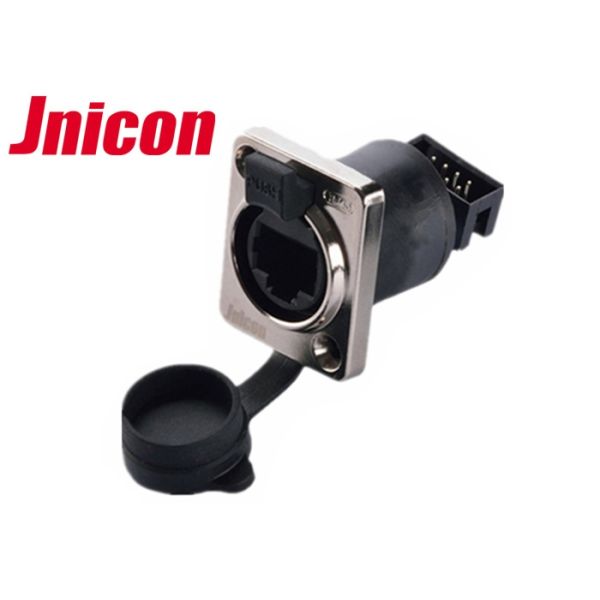

Picture Display / Show - IP44 Pin Header Panel Signal Connector & Waterproof Cap

IP65 Waterproof Data Connector , 8 Pin Header Panel Signal Cable Connectors

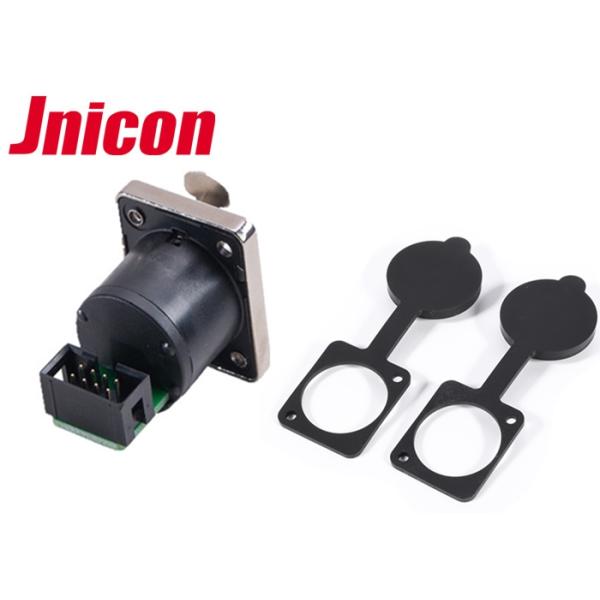

Finished Good - IP65 Pin Header Signal Panel Connector

IP65 Waterproof Data Connector , 8 Pin Header Panel Signal Cable Connectors
