F Branch 2 Way Waterproof Connector High Current Safety For Data Transmission
F Branch 2 Way Waterproof Connector High Current Safety For Data Transmission
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Data Connector
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product type :
5 Pin Waterproof Data Connector
current rating :
10A
voltage rating :
300V
cable gauge :
24~16AWG
number of contacts :
2/3/4/5 pins are available
diameter range :
MAX9.0mm
Description

5 Pin Plug Waterproof Data Connector F Branch 2 Ways Sealed With Cable IP68

The feature of screw locking type 5 Pin Waterproof data connector:

• The current/voltage rating of IP68 waterproof connector are 10A/300V.

• multi-pins(2-5 pins) for varies industrial demands

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

• Screw locking style,easy to assemble.

• High current application safety and stable wire.

The specifiction of 10A waterproof circular connector

Connecting mode screw locking type
Protection level IP68
Cable specification 0.5mm²~ 1.5mm²/20~16AWG
Diameter range MAXΦ9mm
Current rating(A) 10A
Operating voltage(AC.V.rms) 300V
Withstand voltage(AC.V)1min 1500V
Temperature rating -40°C~105°C
Method of connecting cable Solder connector
Prevent the combustion level UL94-V0

Application:

M15 series connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

Apply in harsh environment is still perfect.

Product material feature:

• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Our waterproof connector have protection level: IP68.

• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

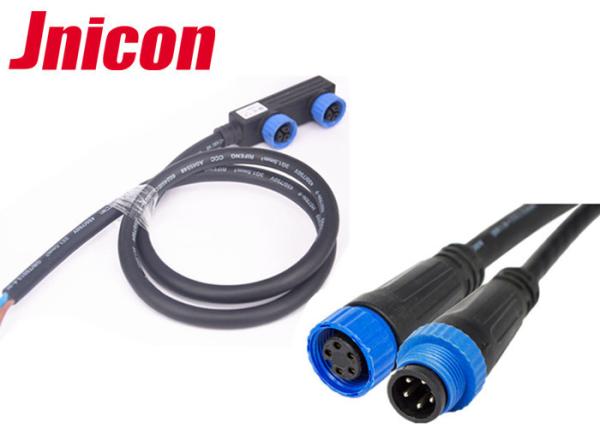

Product detail picture

F Branch 2 Way Waterproof Connector High Current Safety For Data Transmission
