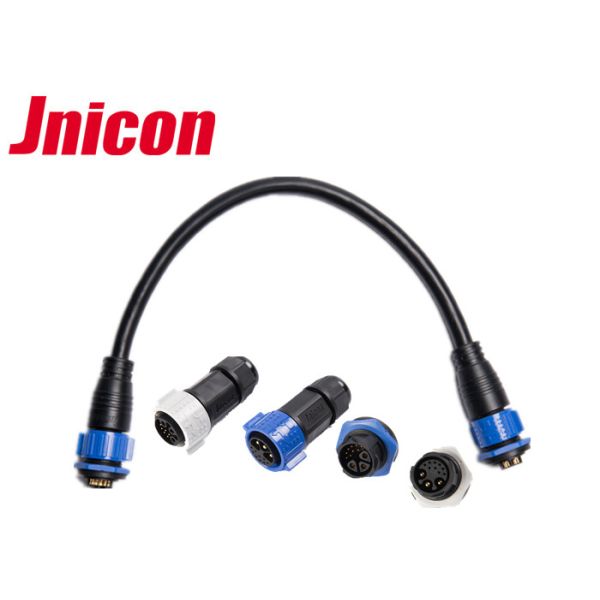

High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding
High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Data Connector
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product name :
12 Pin Plug With Socket Waterproof data Connector
current rating :
30 A+5A
cable gauge :
24-12 AWG
contact diameter :
∅ 2.7 mm+∅ 1.0mm
material of copper alloy :
copper alloy with gold plate
operation temperature :
-40℃~80℃
Description

12(3+9) Pin Plug With Socket Waterproof data Connector Plug Lock Cable Welding

More details of 12(3+9) Pin Plug With Socket Waterproof data Connector:

• the current/ voltage of waterproof data connector are 30A+5A/300V+60V. the withstanding voltage is 1500V AC.
• High current application safety and stable wire. 24-12 AWG wire for 3+9 pin waterproof data connector .
• 2-32 pins are available and for varies industrial demands.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Plug/unplug locking style and push locking,easy to assemble.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• The waterproof rating is IP67(plug locking).

The specifiction of 12(3+9) pin waterproof data connector:

SPECIFICATION
Designation12(3+9) pin male female waterproof date connector cable welding
Model No.51-109311-01
ItemSpecification
1. Electrical characteristics
1AContact Resistance10mΩ max.
1BInsulation Resistance10MΩ min.
1CWithstand Voltage1500V AC There shall be no breakdown.
1DRating30A+5A 300V
2. Mechanical
2AMating/Unmating forceMating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2BLife testMating & Unmating 500 cycles
3. Material
3AContact Plating1u" gold plating
3BContact materialBrass (C3604)
3CHousing materialPA66
4. Environmental
4AFlammability UL 94V-0
4BOperation temperature range:-30℃~+80℃
4CPreservative temperature range:-40℃~+85℃


More Detail:

Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

12(3+9) pin waterproof data connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

Product detail picture

High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding

High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding
