Waterproof Electric Signal Connector 9 Pin With Male Female Plug IP67
Waterproof Electric Signal Connector 9 Pin With Male Female Plug IP67
Specifications
Brand Name :
Jnicon
Model Number :
M19 9pin male female connector
Certification :
UL,TUV,CE,ROHS,CQC
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Connector type :
Male to female plug connector
Rated current :
5 Amps
Cable range :
0.3-0.5mm2
Application :
For led signal data connection or control box signal
Warranty :
5 years
Description

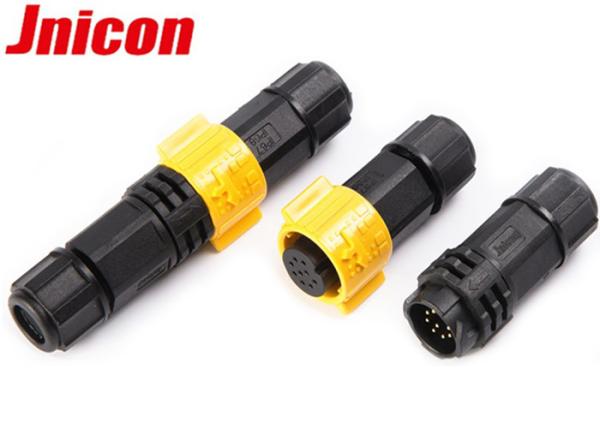

Electric Signal 9Pin Waterproof Data Connector With Male Female Plug IP67

Product Description:

1. Push locking type waterproof connector

2. IP67 protection level

3. Could be field assembly to your applications

4. Multicolor available, such as Blue,yellow,black

9 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission etc.

Technical Data of 9 pin connector :

Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 0.3-0.5mm2
Cable diameter range: 4.5mm-11mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 5A
Operating voltage (AC.V.rms): 125V
Withstand voltage (AC.V)1min: 500V

Reliability to 9 pin connector :

Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0

High quality material to 9 pin connector:

Sealed against dust and fluid (IP67)
Vibration resistance, impact resistance, stretching resistance
Dust cover available

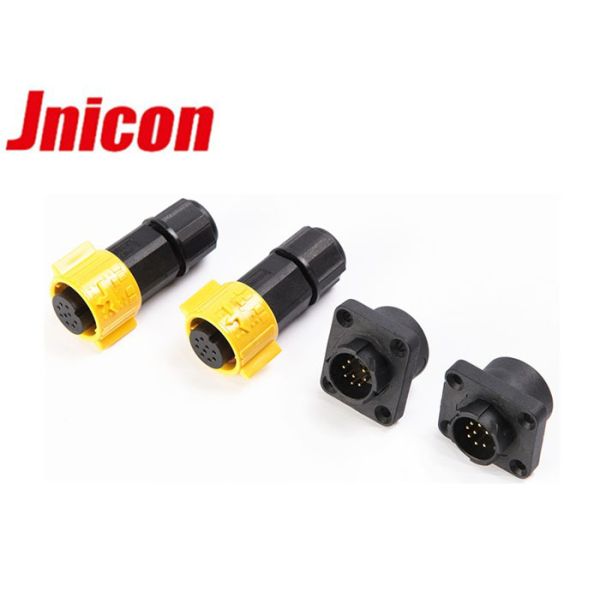

Waterproof Electric Signal Connector 9 Pin With Male Female Plug IP67
