Waterproof Outdoor Plug Connector Screw / Self Lock For Wall Washing Light
Waterproof Outdoor Plug Connector Screw / Self Lock For Wall Washing Light
Specifications
Brand Name :
Jnicon
Model Number :
M16
Certification :
TUV / UL / CE / CQC / CCC
Place of Origin :
Shenzhen China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T , Paypal, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability :
10000 / day
Delivery Time :
3~5 days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Name :
M12 3Pin Connector
Color :
Black
Contact pin :
Gold-Plated
Rated Current :
Max 10A
Material :
PVC Rubber Nylon
Temperature :
-40℃ ~ 105 ℃
Description

Plug Outdoor Waterproof Connectors Screw / Self Lock For Wall Washing Light

Features / Description

1) Screw type / Self - lock type

2) Colors are optional to be used in different environment.we have yellow,black,blue ,white.

3) High performance cover are optional to be used in different environment.

4) 2 ~ 8pin.

5) Rated current: 5A~10+5A.

6) Waterproof level: IP68

7) Certification: ISO9001, CE, UL, ROHS, CCC, TUV.

Datasheet of 3Pin Outdoor Waterproof Connectors

Number of contact

3pin

Current rated

10A

Voltage rated

300V

Protect level

IP68

Diameter range

MAX φ 9mm

Operating temperature

- 40℃ ~ 105 ℃

Cables specification

Max 1.5mm2 (16 AWG)

Connector type

Screw / Self - lock

wiring

Soldering / Welding

Packing and Delivery Details

  1. Packaging Details: carton : 43 X 31 X 23 mm . 1000 pcs / carton.Customized packing is

welcomed , MOQ of printing customized box is 3000 pcs each model

  1. Delivery Details: sample 2~3 working days, products in 7 days after payment.

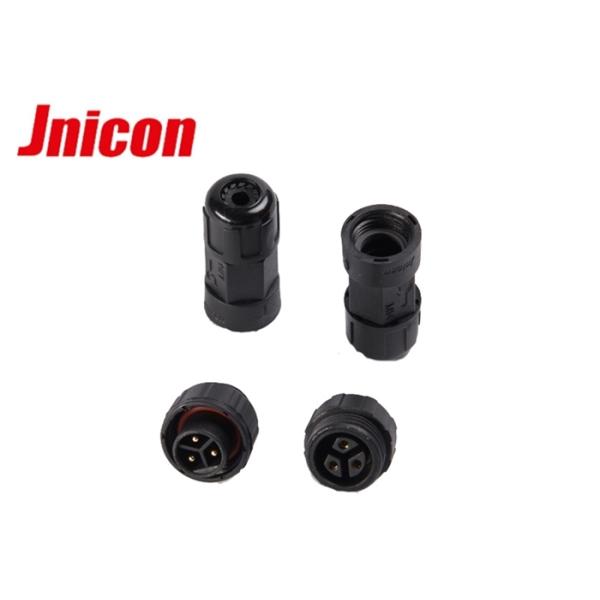

Product Show of Male to Female Waterproof Connector

Waterproof Outdoor Plug Connector Screw / Self Lock For Wall Washing Light

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: How long is your delivery time ?
A:Generally for the sample we can send out within 2 working days after payment.

Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer), Western Union and Paypal. Please be sure that we can receive thesame amount of the Invoice. And you can pay money In RMB. No problem.
