Eco - Friendly Waterproof Circular Connectors Push Locking IP67 Blue Ring
Eco - Friendly Waterproof Circular Connectors Push Locking IP67 Blue Ring
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Circular Connecto
Certification :
UL/CE/TUV/CQC/RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal,Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag; 2.Carton; 3.As per customer's requirement
Name :
Waterproof Circular Connectors
Gender :
Male to female
Material :
High performance engineering plastics
Protection level :
IP67
Connect type :
Push locking
Rated Voltage :
300V
Description

Eco-Friendly Push Locking Waterproof Circular Connectors IP67 Blue Ring

Product Features

  • Name:Waterproof Circular Connectors
  • Protection level:IP67
  • Connecting type:Push locking
  • Warranty:3 years
  • Assembly type:Soldering
  • Number of contact pin:1-8 pin are available
  • Color:Black,Blue and Yellow

Product Parameter

Product name Waterproof Circular Connectors
Protection level IP67
Cable specification 0.5mm2~ 1.0mm2 (20~18 AWG)
Contact diameter×Qty Φ1.5×4
Current rating(A) 10A
Operating voltage(AC.V.rms) 300V
Operating temperature -40℃-105℃
Flame resistant rating UL94-V0

Our Advantages

  1. Water Circular Connectors
  2. Connecting everything perfectly
  3. 10A Max , IP67 protection level
  4. Multi pin available
  5. Approved by UL,CE,TUV and RoHS
  6. Push locking structure
  7. 3 years warranty
  8. Long service life & easy to assemble

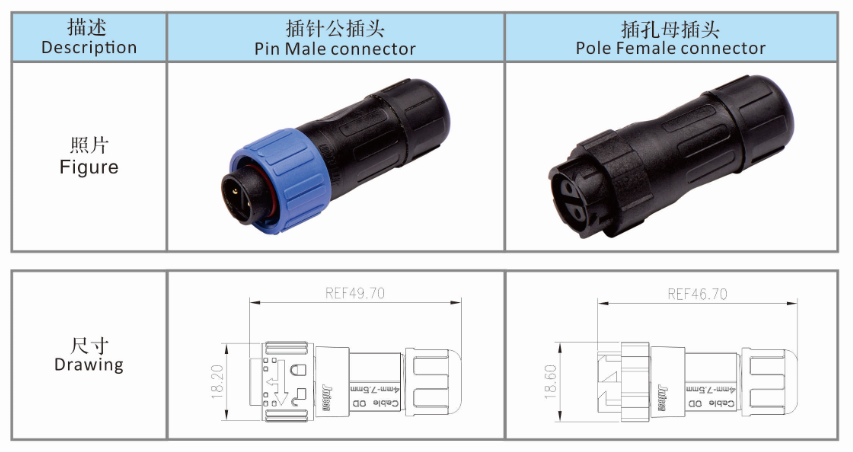

Product Dimention

Eco - Friendly Waterproof Circular Connectors Push Locking IP67 Blue Ring

Detailed Picture

Eco - Friendly Waterproof Circular Connectors Push Locking IP67 Blue Ring

Product tags

two pin waterproof connector

,

waterproof circular connectors

,

2 pin waterproof connector
