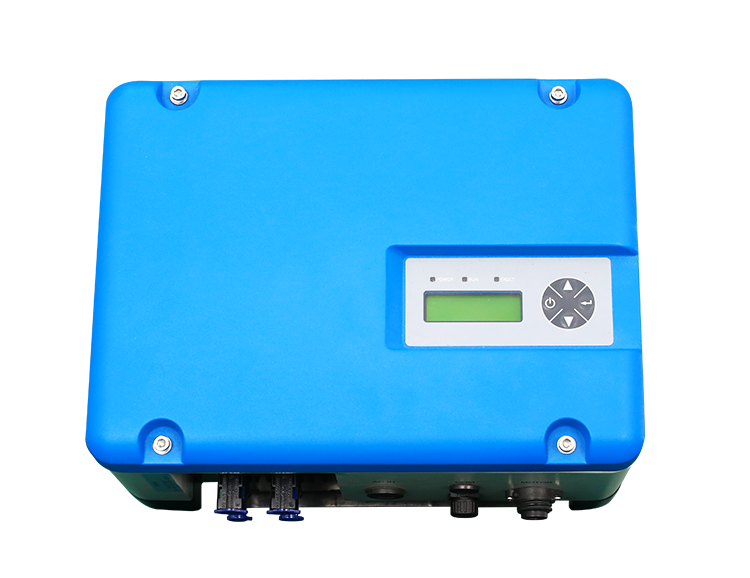

Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP2K2LS
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard export carton packing with wooden-pallet
MOQ :
2 Set/Sets
Price :
Negotiable
Certification :
CE
Delivery Time :
3 - 30 working days
Output Type :
Single
Input Voltage :
440V
Output Voltage :
220V/230V/240V
Type :
DC/AC Inverters
Output Frequency :
0~50Hz/60Hz
Output Current :
15A
Size :
52*40*35cm
Weight :
12kg
MPPT Voltage :
150~400V
Display :
LCD
Protection Level :
IP65
Cooling Way :
Nature Cooling
Warranty :
3 Years
Port :
Shanghai port,Ningbo port,Nanjing port
Description

JNTECH solar pumping inverter special designed for water pump, it converts DC power produced by solar panels to AC

power which drives AC pump to pump water from borehole,river,lake etc. to water storage device.

The power range of single phase solar pumping inverter is from 750w to 2.2kw, all high efficiency, IP65 production,3years

warranty.

Jntech 2.2kw Single Phase Solar Inverter / 220v Solar Inverter For Water Pump

Product features

1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
9. ROI is only less than 2 years compared to diesel generator.
10. Wide application with all kinds of PV modules and traditional AC pump.
Parameters
Max. Input DC voltage 440VDC
Recommended MPPT voltage 150~400V
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 2200W
Rated output voltage 220/230/240Vac
Output frequency range 0~50/60HZ
Max.output current 15A
Dimension(W/H/D) 420*310*211mm
Weight 14.5kg
Max. efficiency 99%
Protection class I
Protection level IP65
Operating temperature -25~60degree
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS(optional)
Altitude 3000m(above 3000m need derate operating)
Noise emission <50dB
