JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP1K1LS
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard Export Packing
MOQ :
>=2 Sets
Price :
$428.00
Certification :
CE, TUV
Delivery Time :
20 days
Output Type :
Single
Input Voltage :
120~400Vdc
Output Voltage :
220/230/240Vac
Type :
DC/AC Inverters
Output Frequency :
0~50/60Hz
Output Current :
9A
Size :
350mm*278mm*179mm
Weight :
9.5KG
Warranty :
3 Years
Protection Level :
IP65
Certificate :
ISO9001/14001/CE/TUV
Operating Temperature :
-25℃~+60℃
Display :
LCD
Communication :
RS485/GPRS
Port :
Port Shanghai, Port Ningbo
Description

1. Simple Introduction Of JNTECH Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.

The power drawn from AC source is adjustable according to the intensity of solar energy.

JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac

2. Product features:

1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
9. ROI is only less than 2 years compared to diesel generator.
10. Wide application with all kinds of PV modules and traditional AC pump.


3. 1.1kw solar pump inverter parameters

Max. Input DC voltage 440Vdc
Recommended MPPT voltage 120-400Vdc
Max. Input DC current 11A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 1.1kW
Rated output voltage 220/230/240Vac; single phase
Output frequency range 0-50/60Hz
Rated output current 9A
Dimension(W/H/D) 350mm*278mm*179mm
weight 9.5KG
Max. efficiency 97%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240VacJNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)

Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start

5. Pump Specifications

We choose pump according to project head and water requirement.

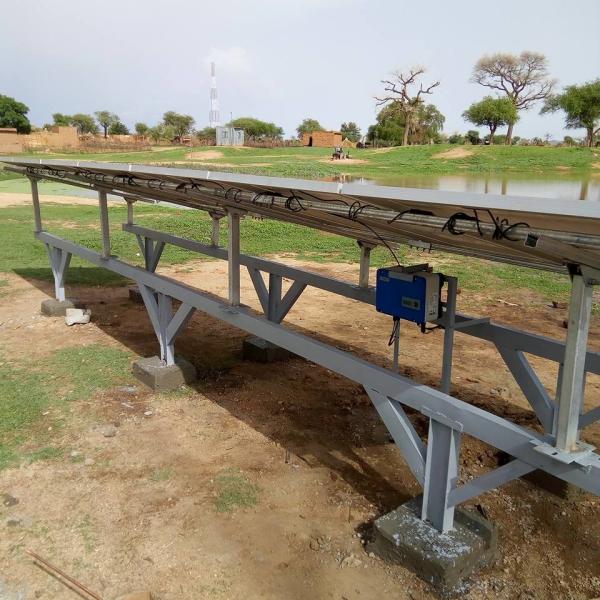

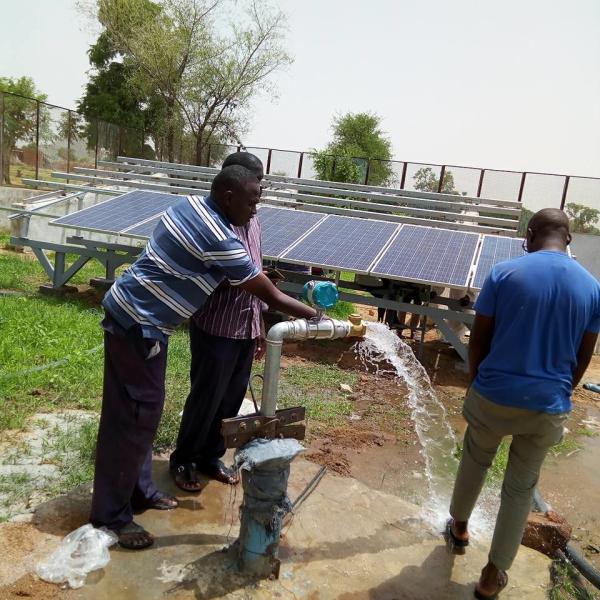

6. ON-Site Projects' Pictures

JNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240VacJNTECH 1.1kW Single Phase Solar Pump Inverter With MPPT Function 220/230/240Vac
