2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
Specifications
Brand Name :
JNTECH
Model Number :
JNP5K5H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Could be discussed
Payment Terms :
T/T
Supply Ability :
200+pcs+per week
Delivery Time :
1-30 days
Packaging Details :
carton pallet
Protection Level :
IP65
Warranty :
3years
Operating Temp. :
-25℃---+60℃
Communication :
RS485/GPRS
Cooling way :
Natural cooling
Display :
LCD
Number of string :
2
Noise Emission :
＜50dB
Description

JNP5K5H 5.5KW,7.5HP,Solar Pump Inverter,MPPT,IP65,380-460Vac,Natural cooling, Display LCD,RS485/GPRS
1. JNTECH 7.5HP(5.5kw)Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
2. Product features:

1. Grid utility work when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.

3. 7.5HP 5.5kw solar pump inverter parameters

Max. Input DC voltage880Vdc
Recommended MPPT voltage460-850Vdc
Max. Input DC current12A
Max. MPTT efficiency99%
Number of Strings2
Max. applicable motor output power5.5KW
Rated output voltage380-460Vac 3 phase
Output frequency range0-50/60Hz
Rated output current13A
Dimension(W/H/D)420*310*229mm
weight13.9kgs
Max. efficiency98%
Protective classI
Protection degreeIP65
Environment temperature-25ºC-+60ºC above 60ºC need derate operation
Cooling methodNatural cooling
DisplayLCD
Communication interfaceGPRS/RS485
Altitude3000m; above 3000m need derate operating
Noise emission<50dB
complianceEN 50178; IEC/EN 62109-1; IEC61800


4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start
5. Solar pumping inverter

6. Pump Specifications
We choose pump according to project head and water requirement.

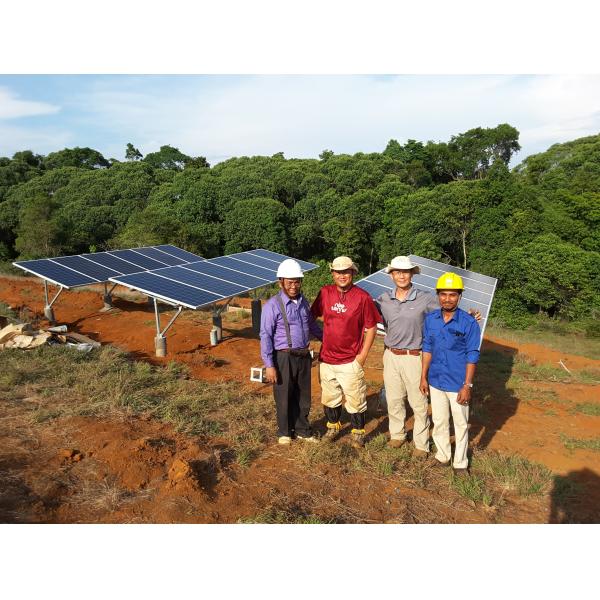

7. ON-Site Projects' Pictures
2 Strings 5.5KW 7.5HP Solar Pump Controller Full Automatic 380-460Vac JNP5K5H
