18.5kw Jntech Inverter High MPPT Efficiency Solar Water Pump Controller
18.5kw Jntech Inverter High MPPT Efficiency Solar Water Pump Controller
Specifications
Brand Name :
JNTECH
Model Number :
JNP18K5H
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Rated Output Voltage :
380~460Vac
Case :
Anodized aluminum
Protection :
IP65 protection
Remote communication :
RS485/GPRS
Warranty :
3 years warranty
Packing :
Carton
Description

18.5kw Jntech Inverter , Factory High MPPT Efficiency Solar Water Controller

1. Simple Introduction of JNTECH solar pumping system
JNTECH Solar Pumping system consists of solar panels, solar pump inverter, AC pump and water storage device. The inverter transfers DC power to AC power which drives AC pump to get water from borehole, river, lake etc. to water tank. The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels. It will make the system to maximize efficiency to get water as much as possible.

Meanwhile, accessories will be added in solar pumping system for more functions. AC power pack for hybriding with AC input, high voltage solar charger for saving energy, AC filter for protecting pump from reflect voltage and harmonic wave.


18.5kw Jntech Inverter High MPPT Efficiency Solar Water Pump Controller

2. Product features:

1. Reliable solution for agricultural irrigation, daily water using, desert control in non-electricity and water deficient area;
2. Built-in DC switch, no need extra DC breaker when system installation, much safer;

3. Soft start and soft stop design, can protect pump for rush current;
4. Any parameters or system status can be seen through LCD display;
5. Environment temperature can be up to 60℃ and Max. relative humidity>90%;
6. All series of JNTECH solar pump inverter give three years warranty;
7. With weatherproof for outdoor installation, IP65 design, protect pump from rain, dust and sand;
8. Automatically dry protection, with water level sensor module for tank overflow protection;
9. System can work 24 hours per day with AC power pack or built-in AC by-pass module;
10. Pump motor capacity no need derate, 1:1 match with any AC pump.


3. 18.5kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 41.1A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 18.5KW
Rated output voltage 380-460Vac; three phase
Output frequency range 0-50/60Hz
Rated output current 36A
Dimension(W/H/D) 360mm*500mm*176mm
weight 19.9KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

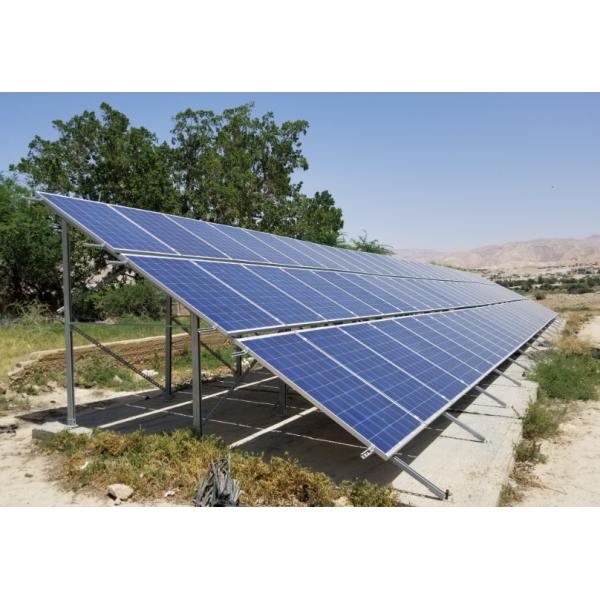

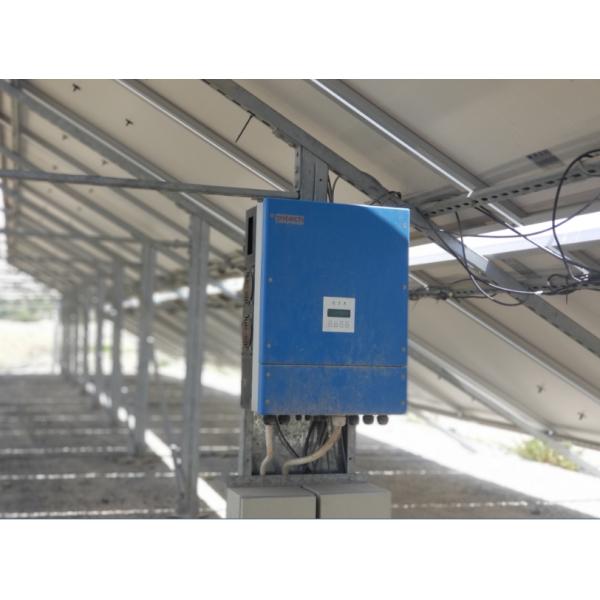

4. ON-Site Projects' Pictures

18.5kw Jntech Inverter High MPPT Efficiency Solar Water Pump Controller

18.5kw Jntech Inverter High MPPT Efficiency Solar Water Pump Controller
