440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
Specifications
Brand Name :
JNTECH
Model Number :
JNP7K5H
Certification :
CE TUV
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000/Set-USD7000/Set
Supply Ability :
450 Sets/ Month
Delivery Time :
Within 7 working days after order confirmation
Packaging Details :
Carton/ Pallet / Case
Description

10HP 440Vac 60Hz Solar water pump system IP65 protection stable system working 15 years life span

Solar pumping system consists of four parts: solar panels, solar pumping inverter, AC pump and water storage device.
The power range of sola pump we could do for pump is 0.37KW to 165KW.

Matching power of JNTECH Solar pumping inverter with AC water pump is 1 :1;

Matching power of Pump with solar panels is 1 :1.3 to 1.4.

Self-design and producing accesseries for optional functions, like AC input function, battery charge function, monitoring function etc.

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

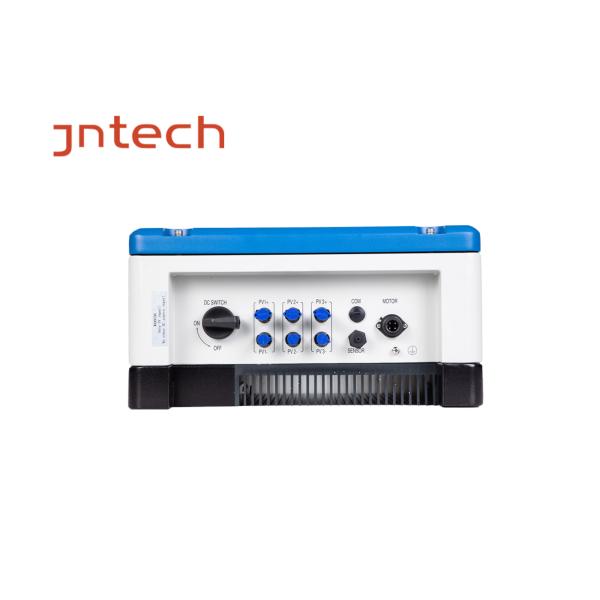

JNP7K5H Solar Pumping Inverter Introduction

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 16.3A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 7.5KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 18A
Dimension(W/H/D) 420mm*310mm*229mm
weight 13.9KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

JNP30KH Solar Pumping Inverter features:

1. Grid or diesel generator can be hybrid at cloudy day or at night, system is available to work 24 hours per day;
2. IP65 design for outdoors installation;

3. Soft start design, can protect pump for rush current;

4. LCD display shows different parameters with system status;

5. Can handle ambient temperature up to 60℃ and Max. relative humidity > 90%;

6. 3 or 5 years warranty for JNTECH solar pump inverter;

7. With DC switch, no need extra DC breaker when system installation;

8. Automatically dry protection, with water level sensor module for automatic tank level control;

9. No need derate power capacity for pump matching, matching power with pump is 1:1.

Water Pump Introduction

Model: SJ75-2

3 phase, A.C;

Rated lift head 25m;

Rated water flow 75m3/h

Motor data: 7.5KW, 380V, 50Hz, 6”

Protection level: IP68

Material: all 304 stainless steel (include impeller)

Insulation class: F


Solar Panels

Poly-Crystal; Tier One, Class A, 60P

Voc=38.3V ,Vmp=31.2V ,

Imp=7.04A , Pmax=270Wp

connection method:

19 pcs in series, 2 series in parallels;

Total Power:10260w

or could choose 72P solar panels

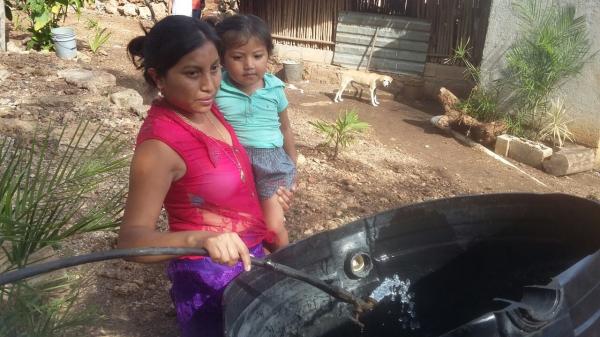

ON-Site Projects' Pictures

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

Package

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System

440Vac 60Hz 10HP Solar Submersible Pump Set / Solar Powered Water Pumping System
