Specifications
Brand Name :
JNTECH
Model Number :
JNP75KH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD60000/Set-USD75000/Set
Supply Ability :
450 Sets/ Month
Delivery Time :
Within 7 working days after order confirmation
Packaging Details :
Carton/ Pallet / Case
Description

100HP 460Vac 60Hz Solar power water pump for agriculture IP65 protection in Mexico

Solar pumping system consists of four parts: solar panels, solar pumping inverter, AC pump and water storage device.
The power range of sola pump we could do for pump is 0.37KW to 165KW.

Matching power of JNTECH Solar pumping inverter with AC water pump is 1 :1;

Matching power of Pump with solar panels is 1 :1.3 to 1.4.

Self-design and producing accesseries for optional functions, like AC input function, battery charge function, monitoring function etc.

100HP 460Vac 60Hz Solar Submersible Pump Kit / Solar Panel Irrigation System

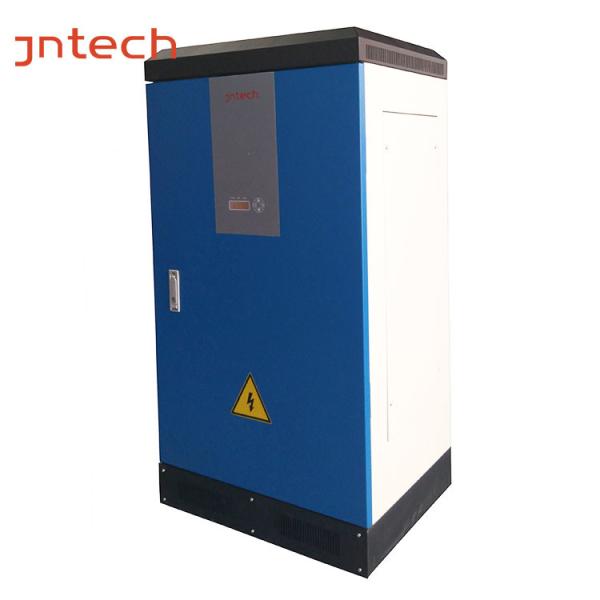

JNP75KH Solar Pumping Inverter Introduction

100HP 460Vac 60Hz Solar Submersible Pump Kit / Solar Panel Irrigation System

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 166A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 75KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 142A
Dimension(W/H/D) 654mm*1210mm*465mm
weight 190KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

JNP30KH Solar Pumping Inverter features:

1. Grid or diesel generator can be hybrid at cloudy day or at night, system is available to work 24 hours per day;
2. IP65 design for outdoors installation;

3. Soft start design, can protect pump for rush current;

4. LCD display shows different parameters with system status;

5. Can handle ambient temperature up to 60℃ and Max. relative humidity > 90%;

6. 3 or 5 years warranty for JNTECH solar pump inverter;

7. With DC switch, no need extra DC breaker when system installation;

8. Automatically dry protection, with water level sensor module for automatic tank level control;

9. No need derate power capacity for pump matching, matching power with pump is 1:1.

Water Pump Introduction

Model: SJ200-8, 3 phase; A.C

With rated lift head 90m;

rated water flow 200m3/h

Rated output voltage: 380Vac, 60Hz

Motor:100HP, 10inch

Protection level: IP68

Insulation class: F

Inner Package: one Ply-wooden case

Dimensions: 2409mm

Gross weight: 386KGS


Solar Panels

Monocrystalline; 72cells

Voc=47.88V ,Vmp=38.63V ,

Imp=9.32A , Pmax=360 Wp

connection method:

16 pieces in series, in 17 parallels;

Total Power: 97,920w;

Or 16 pieces in series, in 18 parallels;

Total Power: 103,680w

Or: Use 375W panels

375W*16PCS*17Parallels

ON-Site Projects' Pictures

100HP 460Vac 60Hz Solar Submersible Pump Kit / Solar Panel Irrigation System

Package

100HP 460Vac 60Hz Solar Submersible Pump Kit / Solar Panel Irrigation System
