Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP5K5H
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard export carton packing with wooden-pallet.
MOQ :
2 Set/Sets
Price :
$630.00 - $800.00 / Sets
Dc. Max. input voltage :
880V
Recommended MPPT voltage :
460-850VDC
Max. MPPT efficiency :
99%
Max. motor output power :
5.5KW
Rated output voltage :
380-460Vac three phase
Output frequency Range :
0-50/60Hz
Communication :
RS485/GPRS
Display :
LCD
Protection level :
IP65
Warranty :
3 Years
Port :
Shanghai port, Ningbo port, Nanjing port
Description

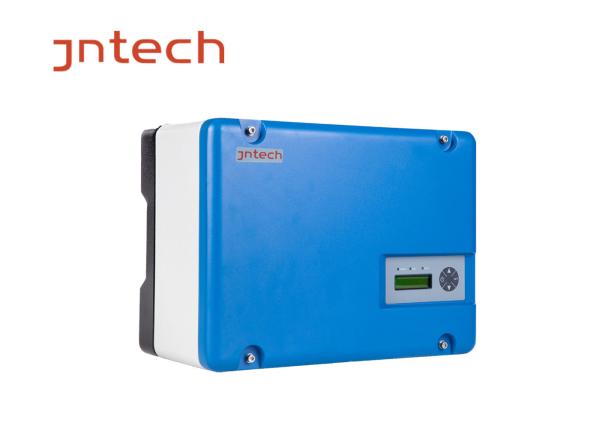

Jntech 3phase DC/AC 5.5kW Solar Irrigation Pumping Inverter with MPPT Function

1. Introduction of three phase AC solar pump inverter

Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping

inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw

to 132kw.High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

2.Features of Three phase AC solar pump inverter

1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.

efficiency is more than 99%.

2), With IP65 design, It can be installed outside with good waterproof.

3), Matching for any ordinary three phase 50Hz/60Hz pumps.

3), Full protection function can keep the system always in safe operation.

4), Three years warranty time.

5), Modular design,easy to install,operate and maintain.

3. Technical parameter of solar pump inverter

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 12A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 5.5KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 13A
Dimension(W/H/D) 420x310x229mm
weight 13.9kg
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Natural cooling
Display LCD
Communication interface RS485
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

4.Introduction of Jntech solar pumping system

Jntech solar pumping system consists of solar panels, solar pumping inverter, three phase AC pump and storage device.The solar pumping inverter converts the DC power from solar panels to AC power which drives AC pump to pump the water from borehole, lake, river etc. to the storage device.

High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

5.Application of solar pumping system

High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

6.Project reference

High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

Packaging & Shipping

By sea Delivery from Shanghai or Ningbo or Nanjing seaport
By air Departure from Shanghai Pudong Airport
By express By TNT/DHL/FedEx
Company information

High Efficiency Solar Pump Inverter With MPPT Function 3 Phase DC/AC 5.5kW

JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.

JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.

Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.

Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.

Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.

Welcome to contact us!
