75kw Solar Pump Inverter For Solar Automatic Center Pivot Irrigation System
75kw Solar Pump Inverter For Solar Automatic Center Pivot Irrigation System
Specifications
Brand Name :
JNTECH
Model Number :
JNP75KH
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Warranty :
3 years
Color :
Blue
Number of String :
2
Protection :
IP21
Dimension :
654mm*1210mm*465mm
Weight :
190kg
Description

1. Simple Introduction
JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required

by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust

pump speed, matching energy required to energy available. This enables the system to operate under

varying solar insolation levels, and provide water throughout the day and different seasons. The inverter

untilize a high efficiency MPPT algorithm to maximize power harvested from solar panels.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar

energy, can keep pumping system working 24 hours a day.

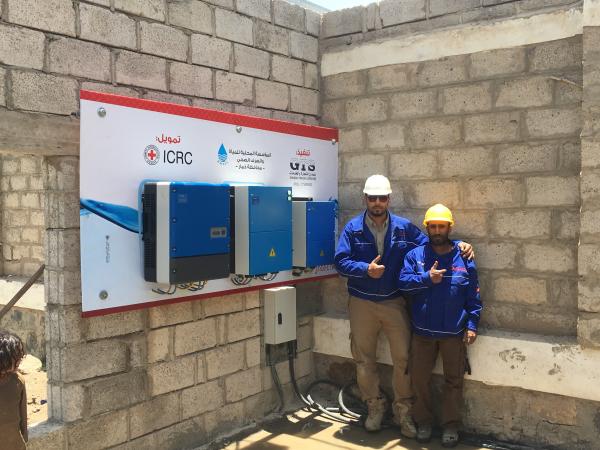

75kw Solar Pump Inverter For Solar Automatic Center Pivot Irrigation System
2. Product features:
1. Adopt advanced IGBT power module;
2. Wide application with all kinds of PV modules and 3 phase AC pump;

3. Adopt advanced IGBT power module;
4. High flow system for faster tank fill and perfect water output;
5. Simple installation and required less maintenance;
6. Soft start and soft stop design, can protect pump from rush current;
7. Fully automatic operation, high reliability;
8. Automatic start and shut off according to solar intensity;
9. GPRS remote monitoring for real time operation status and control on/off;
10. Excellent performance during cloudy weather with 5% more water output compared to competitors.
3. 75kw solar pump inverter parameters
Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 166A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 75KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 142A
Dimension(W/H/D) 654mm*1210mm*465mm
weight 190KG
Max. efficiency 98%
Protective class I
Protection degree IP21
Environment temperature -25ºC-+50ºC; above 50ºC need derate operation
Cooling method Force Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800
