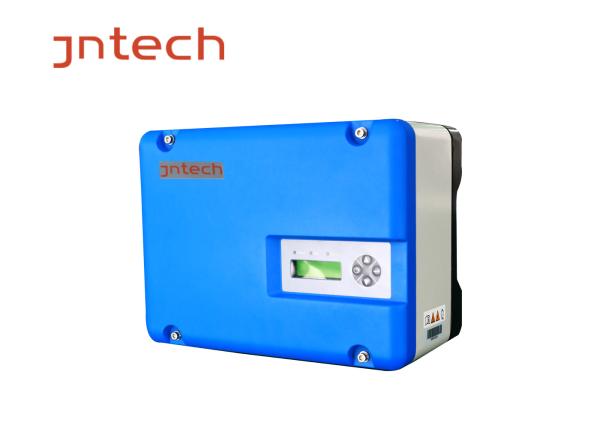

Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP7K5H
Supply Ability :
1000 Sets per Month
Packaging Details :
Each Inverter packed in EV Foam Case then in Paper Carton
MOQ :
2 Sets
Price :
Negotiating
Certification :
CE and TUV
Payment Terms :
T/T, L/C
Delivery Time :
3 - 30 working days
Max. Input Voltage :
880V
MPPT Voltage :
460 - 850 Vdc
Max. Input Current :
16.3 A
Max. MPPT Effeciency :
99%
Number of strings :
2
Max. Output Power :
7.5 kw
Output Voltage :
380 - 460 Vac
Output Frequency :
0 - 50/60 Hz
Output Current :
18 A
Inverter Effeciency :
98 %
Protection Level :
IP65
Operating Temperature :
-25℃ - +60℃
Display :
LCD
Communication :
RS485/GPRS
Size :
420*310*229 mm
Weight :
13.9 kg
Description

1, The Ranges of JNTECH Solar Pump Inverters
Single phase output , 220 to 240V , 50/60 Hz : 370w to 2.2kw
Three phase output , 220 to 240V , 50/60 Hz : 1.1kw to 4kw
Three phase output , 380 to 460V , 50/60 Hz : 2.2kw to 132kw

2. Product features
Drive power-matched any three-phase AC pump
Adopt advanced IGBT power module
High conversion efficiency, low temperature rise, low noise, long lifespan
Advanced MPPT technology, efficiency ＞99%
Fully automatic operation, it can store operation date for 10 years
Perfect system protection, high reliability
LCD display
Interface:RS485/GPRS (optional)
Modular design, easy to install, operate, maintain

2. 7.5kw solar pump inverter parameters

Max. Input DC voltage 880 Vdc
Recommended MPPT voltage 460 - 850Vdc
Max. Input DC current 16.3 A
Max. MPTT efficiency 99 %
Number of Strings 3
Max. applicable motor output power 7.5kW
Rated output voltage 380 - 460 Vac three phase
Output frequency range 0 - 50/60Hz
Rated output current 18 A
Dimension(W/H/D) 420mm*310mm*229 mm
weight 13.9 KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation

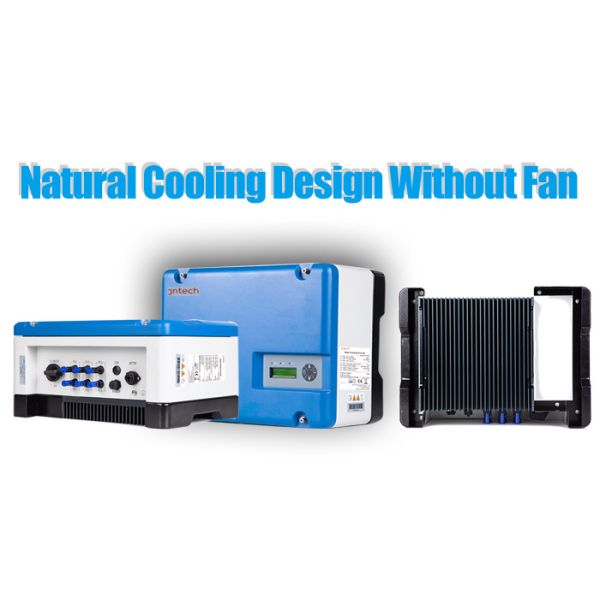

Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
Certification TUV

3, Full Protection Function
1), Automaticaly dry protection to protect motor
2), Overflow protection
3), Short circuit protection
4), Reverse polarity protection
5), Under-voltage, weak sunshine, over-current, over-load, shortage-phase output Protection.

4, Warranty and service
3 years warranty for all solar pump inverters, We supply prompt On line service , on site service.

5, Certification
CE and TUV

6, Project Reference

Modular design MPPT Solar Pump Inverter 3 Years Warranty easy operation
7. Ralated products
Solar Pump Inverter: 370W to 132kw.
Outlet Filter to protect motor.
AC Power Pack to hybrid solar input and AC input
Pure Sine Way Solar Off Grid Inverter : 1Kva to 5Kva
