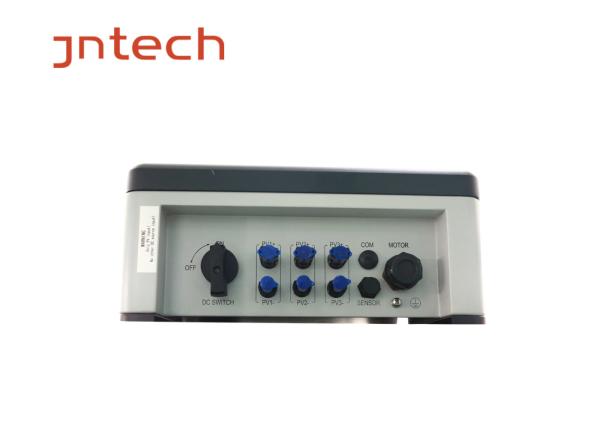

20hp Dc To Ac Solar Inverter , Solar Panel Inverter For Home Water Using
20hp Dc To Ac Solar Inverter , Solar Panel Inverter For Home Water Using
Specifications
Brand Name :
JNTECH
Model Number :
JNP15KH
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Display :
LCD display
Warranty :
3 years
Cooling Way :
Force Cooling
Max. Efficiency :
98%
DC Max. Input Current :
33.3A
Protection :
IP65 protection
Description

20hp Jntech Solar Pump Inverter , Solar Panel Inverter For Home Water Using

1. Simple Introduction
JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from solar panels.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.


20hp Dc To Ac Solar Inverter , Solar Panel Inverter For Home Water Using

2. Product features:

1. MPPT for maximizing the efficiency of input power;
2. LCD display shows different parameters with system status;

3. JNTECH solar pump inverter with 3 years warranty and 10 years lifespan;
4. High flow system for faster tank fill and perfect water output;
5. Can handle ambient temperature from -25℃ to +60℃;
6. Simple installation and required less maintenance;
7. Up to 55kw with IP65 protection, resistant to rain, dust and sand;
8. Automatic start and shut off according to solar intensity, no need manual operation once started;
9. Soft start and stop design, can protect pump from rush current;
10. No need derate power capacity for pump matching, matching power with pump is 1:1.


3. 15kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 33.3A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 15KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 29A
Dimension(W/H/D) 360mm*500mm*176mm
weight 19.9KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800


4. ON-Site Projects' Pictures

20hp Dc To Ac Solar Inverter , Solar Panel Inverter For Home Water Using

20hp Dc To Ac Solar Inverter , Solar Panel Inverter For Home Water Using
